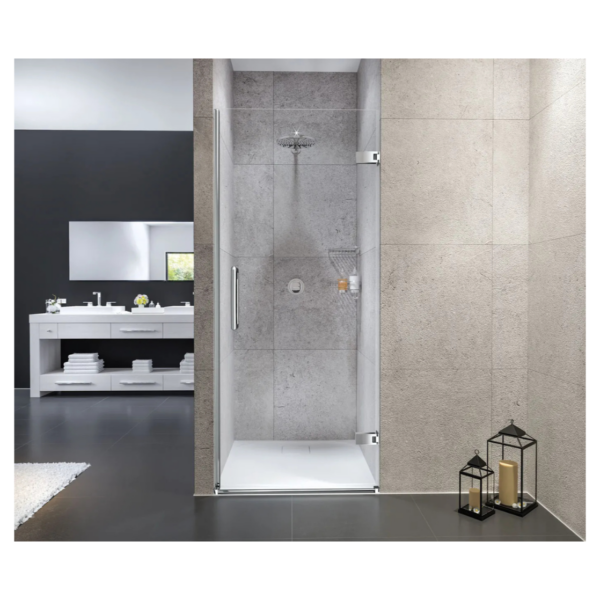

Merlyn GHE850HR 850mm Arysto Ten Right Hand Wall Hinge Door

The Merlyn GHE850HR is an Arysto Ten wall hinge door for a right-hand recess. It is sized at 850 mm, stands 2010 mm high and uses 10 mm clear glass with chrome hardware.

It suits domestic bathroom work, whether you are fitting a new recessed enclosure or replacing an existing hinged door. The recess adjustment range is 820–840 mm, with a 755 mm door opening, 775 mm swing and an 800 mm moving panel.

Glass is clear and 10 mm thick, finished with chrome fittings, and the door is covered by a lifetime guarantee.

Key Features

• Arysto Ten wall hinge door, code GHE850HR
• 850 mm size for a right-hand recess
• Recess adjustment 820–840 mm
• 2010 mm high
• 10 mm clear glass
• Chrome finish
• Door opening 755 mm in the recess
• Door swing 775 mm
• Moving panel 800 mm
• Lifetime guarantee

Benefits

• Gives a hinged door for a right-hand recessed opening
• 10 mm clear glass keeps the enclosure bright
• Chrome finish suits typical bathroom fittings
• Adjustment range covers openings from 820 mm to 840 mm
• 2010 mm height suits a full-height recess enclosure
• Published opening, swing and panel sizes help with planning
• Lifetime guarantee for long-term peace of mind
• Suitable for new installs and replacement hinged doors

Technical Specifications

• MPN: GHE850HR
• Model: Arysto Ten
• Size: 850 mm
• Adjustment in recess: 820-840 mm
• Height: 2010 mm
• Glass thickness: 10 mm
• Glass finish: Clear
• Colour: Chrome
• Handing: Right handed
• Door opening in recess: 755 mm
• Door swing: 775 mm
• Moving panel: 800 mm
• Guarantee: Lifetime

What’s in the Box?

1 x Merlyn GHE850HR wall hinge door
