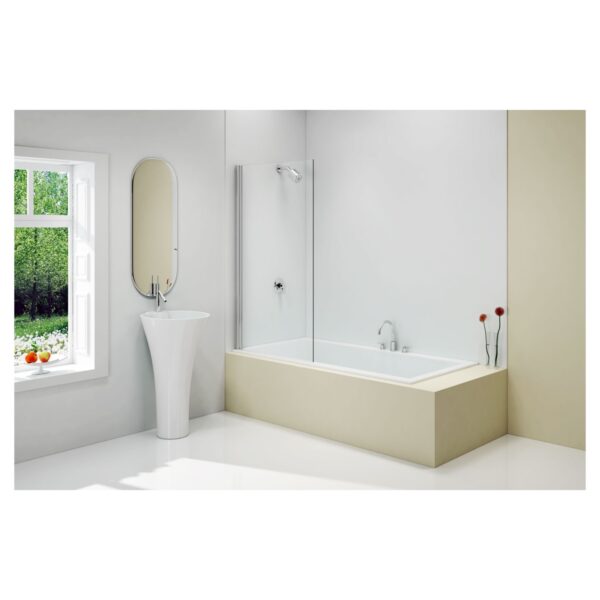

Merlyn MB12 800 x 1400 Chrome Pivot Square Bathscreen

The Merlyn MB12 is a single square pivot bathscreen, 800 x 1400 mm, for fitting to the wall at the edge of a bath. The moving panel swings 90° outwards only and the recess adjustment is 790 to 800 mm.

It is reversible for left- or right-hand walls and is supplied set up for left-hand use. The upright seal must remain on the inside when the handing is reversed. It suits domestic bath-shower installations by trade or competent DIY fitters.

The screen has 5 mm toughened safety glass with a clear finish and chrome colour, and Merlyn states a lifetime guarantee.

Key Features

• 800 x 1400 mm square pivot bathscreen
• 5 mm clear toughened safety glass
• Chrome colour
• Reversible handing, supplied set up for left-hand use
• Swings 90° outwards only
• Recess adjustment 790 to 800 mm
• Moving panel 790 mm with 750 mm swing
• Lifetime guarantee
• Wall profile, bottom seal and solid-wall fixings included

Benefits

• Gives a square bathscreen without a full shower enclosure
• Outward-only pivot keeps the panel clear of the bath interior
• Reversible design covers left- or right-hand bath walls
• Clear glass keeps the bathroom light
• Chrome finish matches typical bath brassware
• 790 to 800 mm adjustment helps the screen sit on the bath edge
• Lifetime guarantee from Merlyn
• Supplied with a wall profile, bottom seal and solid-wall plugs and screws

Technical Specifications

• MPN: MB12
• Size: 800 x 1400 mm
• Height: 1400 mm
• Recess adjustment: 790 – 800 mm
• Glass thickness: 5 mm
• Glass type: Toughened safety glass
• Glass finish: Clear
• Colour: Chrome
• Handing: Reversible
• Swing: 90° outwards only
• Panel swing: 750 mm
• Moving panel width: 790 mm
• Guarantee: Lifetime
• Market: UK, IE, NI

What’s in the Box?

• 1 x glass panel
• 1 x wall profile (SP0L909C)
• 1 x bottom seal (SP0BSF014)
• 3 x wall plugs for solid walls (SP0B08070)
• 3 x ST4x40 screws (A2403001)
• 3 x ST4x12 screws (A2401201)
• 3 x screw cover caps (SP0A308)
• 3 x screw cover cap clips (SP0A309)
