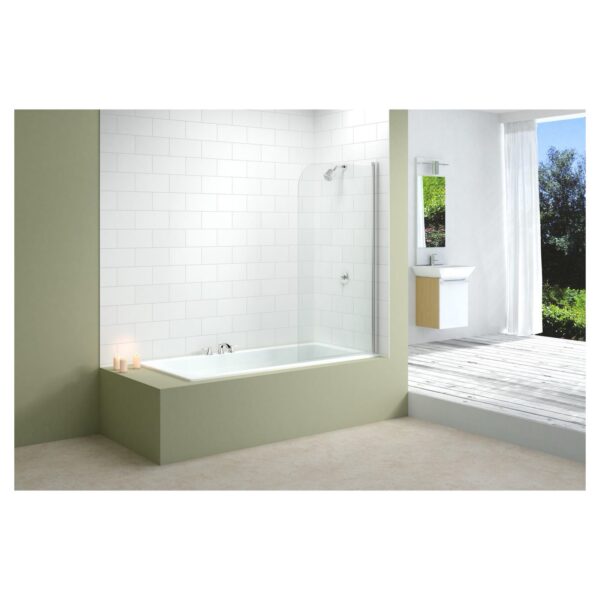

Merlyn MB1 800mm Chrome Single Curved Bath Screen

The Merlyn MB1 is a single curved bath screen, 800 x 1500 mm, for showering over a bath. It swings 90° inwards and outwards and can be reversed to suit the bathroom layout.

It suits domestic bathrooms and both trade and DIY fitting, whether as a new install or a replacement screen. Recess adjustment is 780–800 mm, with a 780 mm moving panel and a 733 mm swing radius.

The screen is made from 6 mm clear toughened safety glass in a chrome finish. HydraSeal compresses at the pivot to restrict water escaping between the seal and the pivot, and the design is Easy-Fit compatible.

Key Features

• 800 x 1500 mm single curved bath screen
• 6 mm clear toughened safety glass
• Chrome finish
• Reversible handing
• Swings 90° inwards and outwards
• 733 mm radius of screen swing
• 780–800 mm adjustment in recess
• 780 mm moving panel
• HydraSeal barrier at the pivot
• Easy-Fit compatible
• Lifetime guarantee

Benefits

• Keeps shower spray over the bath with a single curved panel
• Reversible design suits left- or right-hand layouts
• 90° inward and outward swing gives access to the bath
• HydraSeal restricts leaking at the usual pivot gap
• Clear 6 mm toughened safety glass is easy to see through
• Chrome finish suits typical bathroom brassware
• 780–800 mm recess adjustment helps the screen sit on the bath edge
• Easy-Fit compatibility simplifies installation
• Lifetime guarantee covers the screen

Technical Specifications

• MPN: MB1
• Size: 800 x 1500 mm
• Height: 1500 mm
• Adjustment in recess: 780–800 mm
• Moving panel: 780 mm
• Glass thickness: 6 mm
• Glass type: Toughened safety glass
• Glass finish: Clear
• Colour: Chrome
• Handing: Reversible
• Door swing: 90° inwards and outwards
• Radius of screen swing: 733 mm
• Seal: HydraSeal
• Guarantee: Lifetime

What’s in the Box?

1 x Merlyn MB1 single curved bath screen
