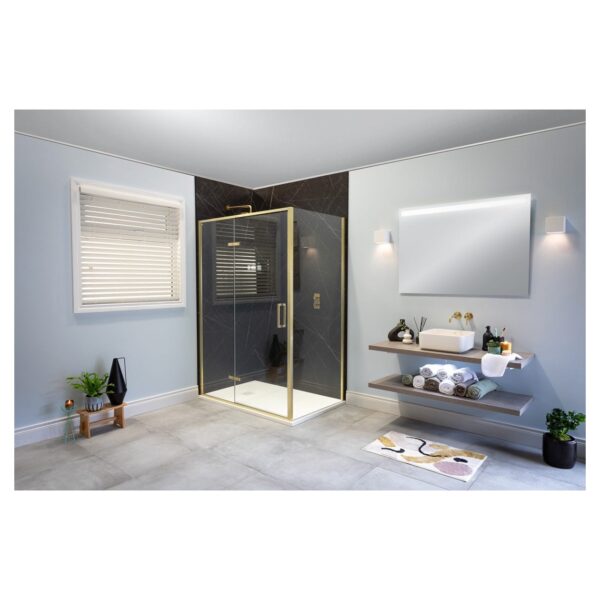

Merlyn AHI14 1400mm Arysto Sleek Hinge And Inline Door

The Merlyn AHI14 is the Arysto Sleek hinge and inline door for a 1400 mm shower opening. A hinged moving panel sits beside a fixed inline panel, giving a 700 mm door opening in a recess or when a side panel is used.

It suits domestic bathrooms and both trade and DIY installation, whether you are fitting a new enclosure or replacing an existing screen. Handing is reversible, so the door can be set to open from either side.

The screen is 1950 mm high with 8 mm clear glass and a chrome finish. Recess adjustment is 1350–1390 mm; with a side panel the range is 1353–1393 mm.

Key Features

• 1400 mm Arysto Sleek hinge and inline door
• 8 mm clear glass
• Chrome finish
• 1950 mm high
• Reversible handing
• Recess adjustment 1350–1390 mm
• Adjustment with side panel 1353–1393 mm
• 700 mm door opening in recess or with a side panel
• Moving panel 730 mm and fixed inline panel 595 mm
• Lifetime guarantee

Benefits

• Gives a full-height hinged entry with a fixed inline panel
• 700 mm opening stays the same in a recess or with a side panel
• Reversible handing avoids ordering a left- or right-hand model
• Adjustment ranges help the screen sit in a typical 1400 mm opening
• Clear glass keeps the enclosure light
• Chrome finish matches common bathroom brassware
• Lifetime guarantee covers the product for the original owner
• Straightforward choice for a new shower or a like-for-like replacement

Technical Specifications

• MPN: AHI14
• Size: 1400 mm
• Height: 1950 mm
• Glass thickness: 8 mm
• Glass finish: Clear
• Colour: Chrome
• Handing: Reversible
• Adjustment in recess: 1350–1390 mm
• Adjustment with side panel: 1353–1393 mm
• Door opening in recess: 700 mm
• Door opening with side panel: 700 mm
• Door swing: 730 mm
• Moving panel: 730 mm
• Fixed panel: 595 mm
• Guarantee: Lifetime

What’s in the Box?

1 x Merlyn AHI14 Arysto Sleek hinge and inline 1400 mm shower door
