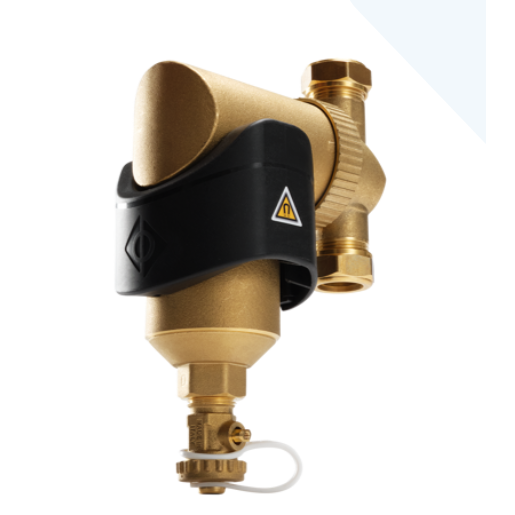

Spirotrap UE028WJ 28mm universal Dirt Filter MB3
- SKU 7FFS0030
- MPN UE028WJ
- EAN 8717811018439
The Spirotech SpiroTrap MB3 UE028WJ 28mm Universal Dirt Filter is a high-efficiency magnetic dirt separator designed to remove both magnetic and non-magnetic contaminants from central heating and cooling systems. Its advanced magnetic technology captures even the smallest magnetite particles, helping to protect boilers, heat pumps and system components while maintaining optimum efficiency and reducing maintenance requirements.
Only 1 left in stock
1 in stock
- Fast UK delivery
- Order by 2pm for same-day dispatch
- Secure checkout
- Easy returns
Description
The Spirotech SpiroTrap MB3 28mm Universal Dirt Filter (UE028WJ) is a high-performance magnetic dirt separator designed to remove both magnetic and non-magnetic contaminants from sealed heating and cooling systems. Featuring Spirotech’s advanced magnetic field booster technology, it captures even the smallest magnetite particles, helping to improve system efficiency, reduce energy consumption, and protect critical components such as boilers, pumps and heat exchangers.
Key Features
- Removes both magnetic and non-magnetic dirt particles
- Advanced magnetic field booster technology for enhanced magnetite capture
- Separates particles as small as 5 microns (0.005mm)
- Universal connection suitable for system flushing
- Constant low pressure drop for optimum system performance
- Dirt can be drained without shutting down the heating system
- Quick, clean and simple maintenance
- Helps protect boilers, pumps, valves and heat pumps from debris damage
Specifications
- Manufacturer: Spirotech
- Product Type: Magnetic Dirt Separator / Dirt Filter
- MPN: UE028WJ
- Connection Size: 28mm Compression
- Maximum Operating Pressure: 6 Bar
- Maximum Fluid Temperature: 110°C
- Fluid Capacity: 0.36L
- Flow Direction: Horizontal or Vertical Installation
- EAN: 8717811018439
Applications
Ideal for domestic and light commercial heating systems with 28mm pipework, including:
- Central heating systems
- Modern condensing boiler installations
- Heat pump systems
- Underfloor heating systems
- Heating and cooling circuits requiring dirt and magnetite protection
The MB3 is particularly effective in systems prone to black sludge (magnetite) build-up, helping to maintain efficiency and extend component lifespan.
What’s in the Box
- 1 x Spirotech SpiroTrap MB3 28mm Dirt Separator (UE028WJ)
- Integrated High-Power Magnetic Assembly
- Drain Valve Assembly
- Installation Instructions
Key Specifications
- 28mm Compression Connections
- Removes Particles Down to 5 Microns
- Captures Magnetic & Non-Magnetic Debris
- Maximum Operating Pressure: 6 Bar
- Maximum Temperature: 110°C
- Universal Flushing Connection
- Low Pressure Drop Design
- Suitable for Heating and Cooling Systems
Specifications
| Manufacturer | Spirotech |
|---|---|
| Product Code | UE028WJ |
| Product Range | Spirotech 28mm Magnetic Dirt Separator |
| Filter Type | Magnetic Filter |
| Connections | 22mm compression |
Product details
| Weight | 2.31 kg |
|---|---|
| Dimensions | 21 × 9 × 15 cm |
| Finish | Black |
| MPN | UE028WJ |
| SKU | 7FFS0030 |
| EAN / Barcode | 8717811018439 |
