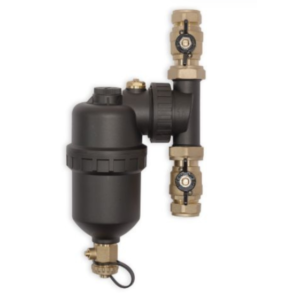

Fernox 62248 TF1 Omega Central Heating Filter with 22mm Slip Connections

Next generation, nickel-plated, brass in-line system filter. Small, smart and simple to install. The TF1 Omega Filter fits onto vertical and horizontal pipework at up to a 45-degree orientation and is simple to install with provided slip socket connections.

The TF1 Omega comes with a 25-year warranty (registration required, T&C’s apply). Note: This item does not include valves.

Key Features

• High capacity and compact design
• Ideal for use in restricted spaces and access areas
• Easy to install
• Fits on horizontal and vertical pipework in both flow directions
• The filter can operate at an angle of 45°
• Fast and easy to clean without dismantling
• Removes magnetic and non-magnetic contaminants from system water
• Easy to fit slip socket with compression fitting and short pipe cut-out length
• Will not block or restrict the flow
• Smart, tough, forged brass construction (no hidden porosity) Nickel Plated
• Unique manifold with double radial seals and multiple orientation capabilities
• Powerful neodymium magnet assembly with threaded magnet cap

Specifications

• Connection: 22mm slip socket
• Maximum operating pressure: 10 bar
• Maximum working temperature: 100°C
• Maximum flow rate: 50 L/min
• Dimensions: 70 x 190 x 132 mm
• Weight: 1.77 kg
• Body material: Forged brass (EN 12165-CW617N-DW), nickel plated
• Magnet: Neodymium
• Hydronic Particle Separator: Stainless steel
• Warranty: 25 years (registration required)

Applications

Designed for domestic central heating systems. Install on the return to the boiler to protect against corrosion debris. Compatible with water, inhibited glycol solutions and Fernox chemical range / system additives (max 50% glycol).

What’s in the box

TF1 Omega Filter with 22mm slip socket connections and installation instructions.

Note: As with all magnetic products, if you have an implanted cardiac device extra caution should be taken at all times when handling any magnetic filter.
