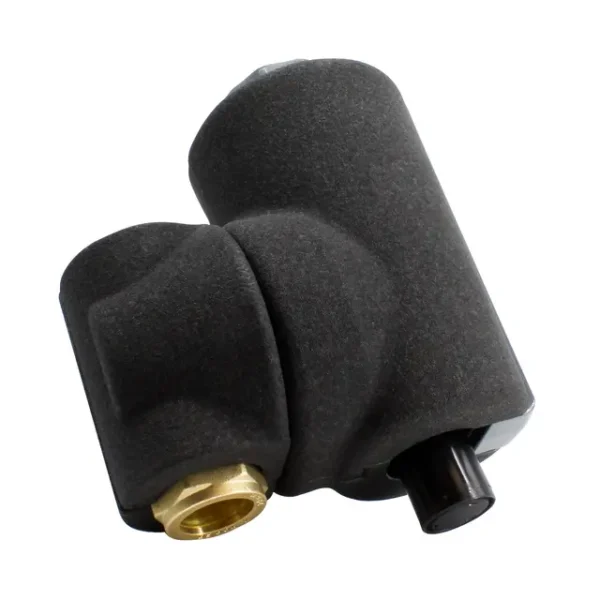

SYR 566-166-1106 Advanced Pro Heating Filter 22/28mm For Heat Pumps & Heating Systems & Cover ( Insulation Jacket )

Maximise Performance and Protect Your System with the SYR Advanced Pro Heating Filter.
Built with efficiency and longevity in mind, the SYR Advanced Pro Heating Filter features a high-performance magnetic filter and 100-micron precision strainer, providing unmatched filtration. The filter captures both magnetic debris and fine non-metallic particles, protecting systems from damage, blockages, and potentially costly breakdowns.
Because of its ultra-fine strainer, even small impurities are strained out, extending the life of system components and significantly increasing overall efficiency.
Its built-in backwashing system offers quick and easy in-place cleaning. It can take less than two minutes and requires no more than a bucket or drain hook-up. No disassembly, no hassle. Just easy & effective maintenance.
The SYR Advanced Pro Heating Filter also features a 360° rotatable flange, enabling flexible installation without affecting the filter body’s (required) vertical orientation. Supplied as standard in 28mm with a 22mm reducing set, it provides straightforward compatibility for a variety of system configurations, including Heat Pumps and Heating Systems.
The additional insulation cover is precisely formed to fit the SYR Advanced Pro Heating Filter, improving the thermal efficiency of the pump by limiting heat loss through the body of the filter & insulating the filter from colder external temperatures.

Key Features

• Rapid Servicing: The backwashing system makes cleaning easy, taking less than 2 minutes to complete on average
• Limited Ongoing Maintenance Cost: Due to not having to replace the filter
• Ultra Fine Strainer: Ultra-fine 100 micron stainless steel strainer for optimal filtration & extended life span
• Flexible Installation: 360° rotation allowing vertical and horizontal installation
• High Quality Material: DZR brass alloy & high-performance plastic construction
• Universal Fittings: 28mm as standard with 22mm reducing set provided, making the product suitable for both heat pumps and heating systems
• Magnetic Sediment Capture: High-powered to catch magnetised debris
• Cooling Systems: Can be utilised for cooling systems with up to 50% glycol mix
• Included Insulation Cover: Cover provides insulation without interfering with the function of the Advanced Pro Heating Filter.

Specifications

• Connections: 28mm compression (22mm reducing set included)
• Strainer: 100 micron stainless steel
• Material: DZR brass alloy and high-performance plastic
• Installation: 360° rotatable flange, vertical body orientation required
• Applications: Heating systems, heat pumps, cooling systems (up to 50% glycol)

Applications

Ideal for protecting boilers, heat pumps and underfloor heating systems from debris and magnetite.

What’s in the box

• SYR Advanced Pro Heating Filter
• 22mm reducing set
• Insulation jacket/cover
