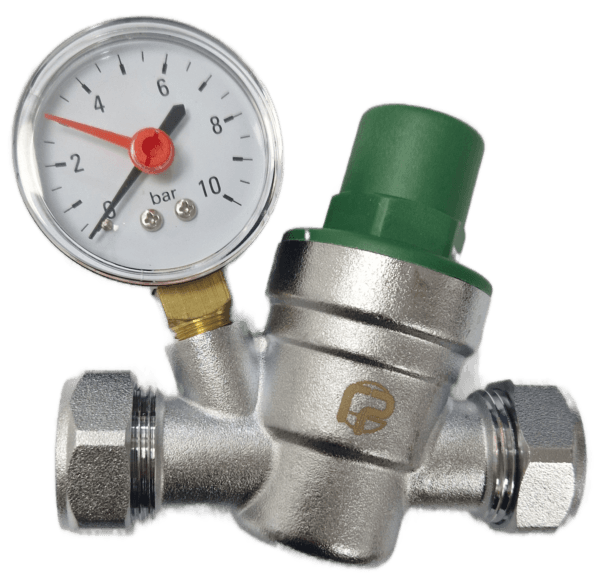

Pond PRV1522 Eres Pressure Reducing Valve with Gauge 15mm or 22mm

Pressure reducing valves are used in water systems to reduce and stabilise the inlet pressure from mains water supplies when they are too high or fluctuate which sometimes can make appliances not function properly. This ERES pressure reducing valve designed for both hot and cold water services within the property is commonly used for making equal pressures to showers and taps so they function correctly. It is suitable for both 15mm and 22mm supplies and comes complete with gauge for easy visibility of pressures.

Key Features

• 22mm compression connection with reducer to 15mm
• DZR body
• Removable cartridge for cleaning – This must be considered when installing
• 1-6 bar adjustable outlet, factory set at 3 bar
• 16 bar maximum inlet pressure
• Maximum working temperature 65°C
• Dimensions including gauge H102mm x W88mm x D87mm

Specifications

• Adjustable outlet pressure: 1-6 bar (factory set 3 bar)
• Maximum inlet pressure: 16 bar
• Maximum working temperature: 65°C
• Connections: 22mm compression with 15mm reducer
• Body: DZR brass
• Includes integrated pressure gauge
• Removable cartridge for servicing

Applications

Domestic hot and cold water services, equalising pressures to showers and taps, protecting appliances from high or fluctuating mains pressure.

What’s in the box

• Pressure reducing valve with gauge
• 15mm reducer fitting
