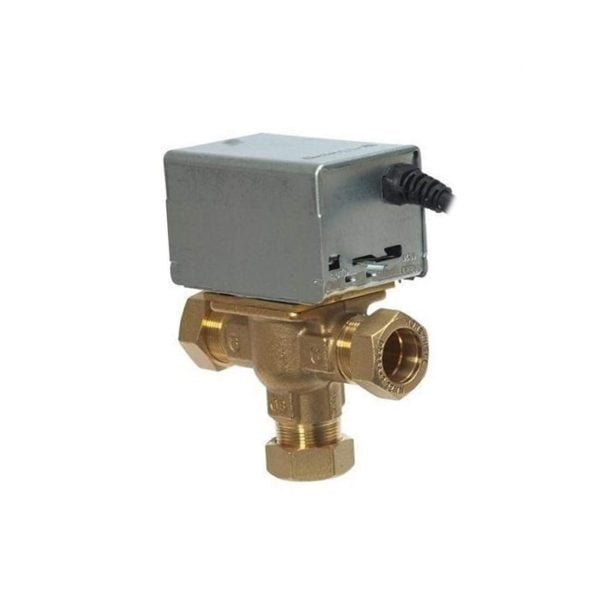

Honeywell V4073A1088U Three ( 3 ) Port 28mm Mid Position Valve

The Honeywell V4073A1088U is a 28mm mid-position motorised valve designed to control the flow of water in domestic central heating systems where both radiator and hot water cylinder circuits are pumped. It is typically suited for small to medium sized installations up to 90,000 Btu/h (26 kW).

Key Features

• Spring return action
• Three position operation
• 28mm compression connections
• Powerhead replaceable without draining down
• Manual lever for filling/draining down
• Quiet operation, minimal power consumption
• Provides electrical output to boiler and/or pump

Specifications

• Voltage: 230-240V ~ 50Hz
• Power consumption: 6W
• Lead: 1 metre, 5 core
• Operating temperature range: +5 to +88°C
• Maximum ambient temperature: +52°C

Applications

Ideal for Y-plan central heating systems in domestic properties.

What’s in the box

V4073A1088U valve with powerhead and 1m lead.
