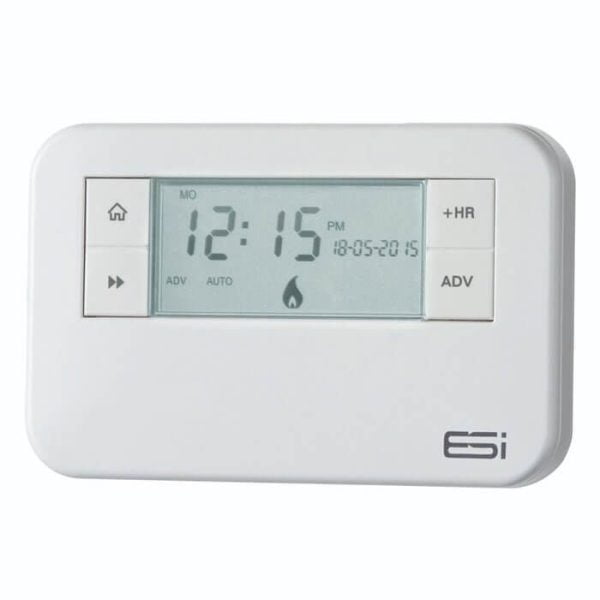

ESI ES1247B Single Channel Electronic Time Switch Programmer

The ES1247B is a single channel electronic time switch and provides volt free output contacts making it an ideal solution for use with both line voltage and low voltage control circuits. The time switch can be configured for 7 day, 5/2 day or 24 hour operation. It is an ideal solution for combi-boilers, for systems having a common Heating and Hot Water zone, and for the control of additional heating zones.

The wall plate used follows the industry standard pattern, as used by many of the other time control manufacturers. This allows for direct replacement often without the need for re-wiring.

Key Features

• Large, easy to read LCD with blue back light
• 7 day, 5/2 or 24 hour operation
• 2 on/offs or 3 on/offs per day
• Automatic BST/GMT 1 hour time change
• Factory set clock and date
• Fits on industry standard backplate
• Easy to use overrides
• Easy to use and quick to install

Specifications

• 1 channel programmer with volt-free contacts
• Power supply 230V AC 50Hz
• Switch rating 6(2)A
• IP30 enclosure
• CR2032 battery backup
• Industry standard backplate 140mm x 90mm x 30mm

Applications

Combi boilers, single heating zones, additional zone or hot water control.

What’s in the box

ES1247B programmer, backplate, fixing screws, instructions.
