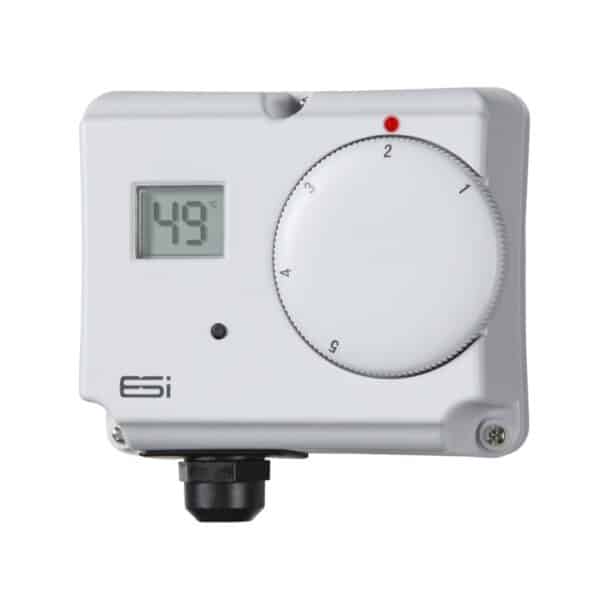

Esi ESCTDEB Electronic Dual Cylinder Thermostat

The ESi Controls ESCTDEB Electronic Dual Cylinder Thermostat provides precise control of stored hot water temperatures with an automatic weekly pasteurisation cycle that raises water to above 61°C to prevent legionella growth, allowing lower everyday storage temperatures for energy savings and peace of mind.

Key Features

• Weekly adjustable one-hour pasteurisation cycle to prevent legionella growth
• Accurate temperature control for maximum energy savings
• Clear LCD display with red LED indicating boiler operation
• Pre-set 80°C limit/safety thermostat with concealed manual reset
• Wide user-defined temperature range with large adjustable dial
• Easy to install and use
• 3-year warranty

Specifications

• Power supply: 230 VAC 50-60 Hz
• Switch rating: SPDT (control) / SPST (limit) 230 VAC 6(1)A
• Temperature range: 25°C to 65°C
• Limit thermostat: 80°C with concealed manual reset
• Switching differential: 2°C
• Protection rating: IP30
• Dimensions: 110 mm (L) x 92 mm (H) x 48 mm (W)

Applications

Ideal for domestic hot water cylinders in S-Plan, Y-Plan or weather-compensated systems. Requires qualified installation to current wiring regulations.

What’s in the box

ESCTDEB thermostat unit with dual sensors, installation instructions.
