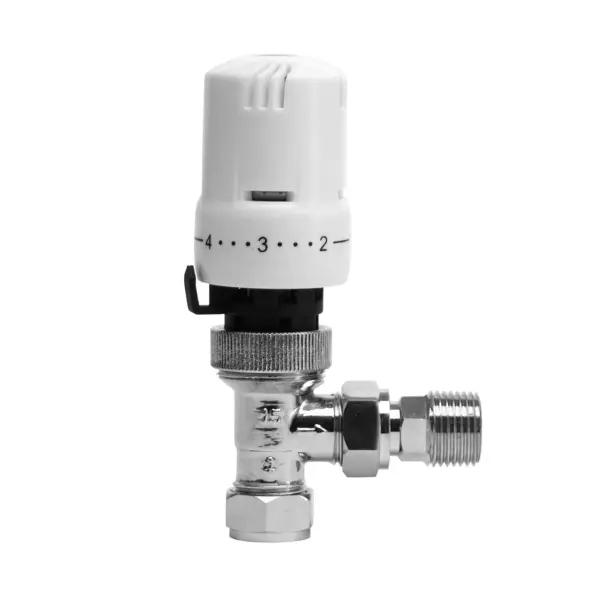

EPH CTRV15 15mm Angled White Thermostatic Radiator Valve

The EPH CTRV15 is a 15mm compression angled thermostatic radiator valve complete with liquid-filled sensor head. It is designed for domestic heating systems and delivers reliable temperature regulation in residential applications.

Certified to EN215 and rated A for efficiency, the CTRV15 features bi-directional flow and is suitable for new installations or replacements on standard radiators. The valve body accepts 15mm compression pipe and the sensor head provides frost protection down to 7°C.

Key Features

• 15mm compression angled connection
• Liquid-filled sensor
• Bi-directional flow
• EN215 certified
• A-rated efficiency
• Temperature range 7–28°C
• Maximum differential pressure 0.6 bar
• Maximum static pressure 10 bar
• Kvs value 1 m³/h
• Maximum flow temperature 90°C

Benefits

• Precise room-by-room temperature control
• Reduces energy consumption in the home
• Easy to install on either side of the radiator
• Vertical or horizontal mounting options
• Manual closing cap included for maintenance
• Frost protection setting prevents freezing
• Quiet operation when differential pressure is maintained
• White finish suits most radiator styles
• Single-pack format ideal for individual replacements

Technical Specifications

• Product Code: CTRV15
• Connection Type: 15mm Compression
• Sensor Type: Liquid filled
• Temperature Range: 7–28°C
• Maximum Differential Pressure: 0.6 bar
• Maximum Static Pressure: 10 bar
• Kvs Value: 1 m³/h
• Maximum Flow Temperature: 90°C
• Certification: EN215
• Efficiency Rating: A

What’s in the Box?

1 x EPH CTRV15 15mm angled TRV valve body with thermostatic head and manual closing cap.
