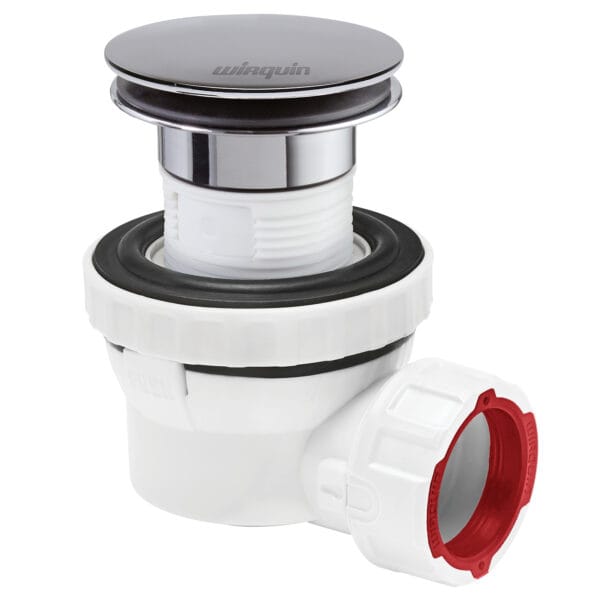

Wirquin 30724233 NANO 6.7 Quick Clac Waste & trap Chrome Dome (for slotted & unslotted basins)

ULTRA COMPACT: At only 6.7cm high Nano is 3 times more compact than a standard trap for maximum space under your basin.

NO SMELLS: The cartridge is equipped with a silicone membrane that opens when water passes and closes automatically afterwards. Its external bi-injected washer guarantees a perfect seal. No more bad smells, no more pipe noises, no more back-siphoning.

EASY TO CLEAN: The membrane cartridge and plug are removable from above for quick and easy cleaning. It also allows for direct access to the pipework in case of any blockages.

TIME SAVING: Quick and easy to install without the need for tools.

360 SWIVEL AND +/-4 TILT: compensates for alignment faults and reduces pressure on the pipes.

SUITABLE FOR SLOTTED AND UNSLOTTED BASINS: Supplied unslotted, the waste can be uncapped for use with basins with a built-in overflow.

QUICK FLOW RATE: 30L/min.

Key Features

• Ultra-compact design only 67mm high
• Smart Membrane Technology for odour-free operation
• Top access for easy cleaning and maintenance
• Tool-free installation with quarter-turn captive nut
• Swivel and tilt for alignment compensation
• 30 l/min flow rate

Specifications

• Height: 67 mm
• Flow rate: 30 l/min
• Body material: PP (polypropylene)
• Nut: ¼ turn with overmoulded washer

Applications

Ideal for slotted and unslotted basins in domestic and commercial installations where space under the basin is limited.

What’s in the box

Complete NANO 6.7 Quick Clac waste and trap with chrome dome.
