Wirquin 10120673 Jollyflush Cistern Refurbishment Kit with Dual Flush Valve and Inlet Valve (Old Code 14010402)

The Wirquin 10120673 Jollyflush Cistern Refurbishment Kit combines a cable-operated dual flush valve and Jollyfill Air inlet valve with bolt-through fixings and donut seal, providing everything needed to refurbish an old cistern.

Key Features

• Cable operation allows flexible button positioning (top or front mount) and suits cistern heights 300-420mm with no adjustment needed
• Compatible with 1-1/2″ (40mm) or 2″ outlets via included rubber adapter
• Jollyfill Air bottom inlet valve adjusts from 250mm to 390mm height with delayed-action filling for water savings
• Adjustable overflow 240-270mm (no cutting required); chrome push button suits holes 14-46mm
• Includes bolt-through fixings, close-coupling washer and reducing washer; WRAS approved with air gap compliance
• Easily serviced and tested to 200,000 cycles

Specifications

• Cistern height range: 300-420mm
• Outlet: 1-1/2″ with 2″ adapter
• Overflow adjustment: 240-270mm
• Inlet valve height: 250-390mm
• Cable length: 300mm
• Button hole diameter: 14-46mm

Applications

Ideal for refurbishing most bottom-entry close-coupled cisterns in domestic bathrooms.

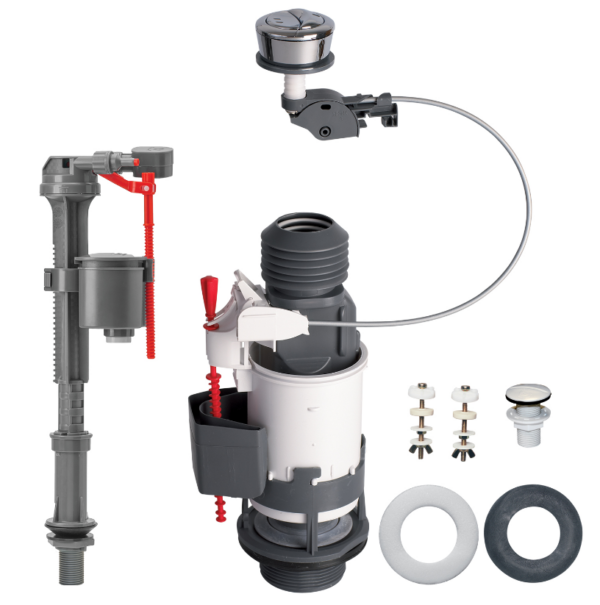

What’s in the box

• Jollyflush cable-operated dual flush valve
• Jollyfill Air inlet valve
• Chrome push button with spacer
• Bolt-through fixings and washers
• Donut seal
