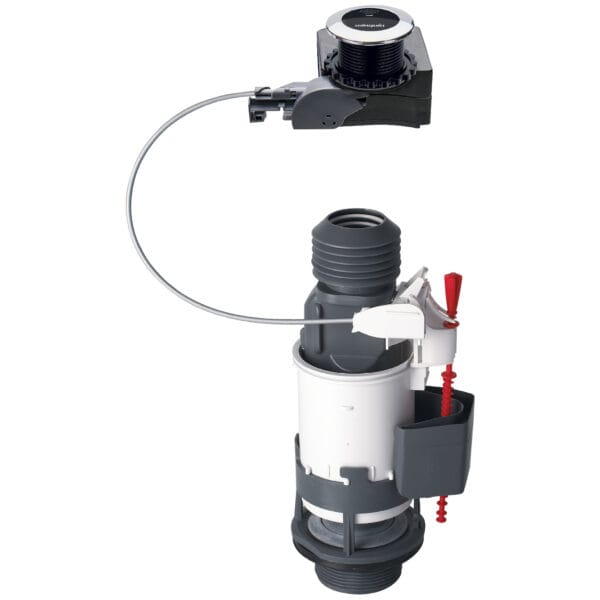

Wirquin 10950189 Jollyflush Cable Operated Dual Flush Valve With Touchless Valve Sensor

The Wirquin TOUCHLESS flush valve (10950189) provides 100% contact-free flushing via motion-activated infrared sensor. A quick hand wave activates a 3 L half flush; holding a hand over the button for 4 seconds activates a full 6 L flush. In the rare event of battery failure a manual override is available.

Key Features

• Cable-operated button for easy installation and height adjustment
• Retrofits standard Jollyflush valves
• Universal 1 ½″ (40 mm) outlet with 2″ rubber adapter
• Adjustable telescopic overflow 240-270 mm (no cutting required)
• Suits cistern heights 300-420 mm and lid holes 38-45 mm
• Battery powered (4 × AA alkaline) with manual override
• Tested to 200 000 flush cycles; 10-year guarantee

Specifications

• Outlet: 1 ½″ with 2″ adapter
• Flush volumes: 3 L / 6 L dual flush
• Overflow adjustment: 240-270 mm telescopic
• Cistern height range: 300-420 mm
• Lid hole diameter: 38-45 mm
• Power: 4 × AA alkaline batteries (approx. 40 000 flushes / 5 years)

Applications

Close-coupled and low-level ceramic cisterns; ideal for hygiene-critical installations.

What’s in the box

Touchless flush valve with sensor, cable-operated button, reducing washer, batteries not included.
