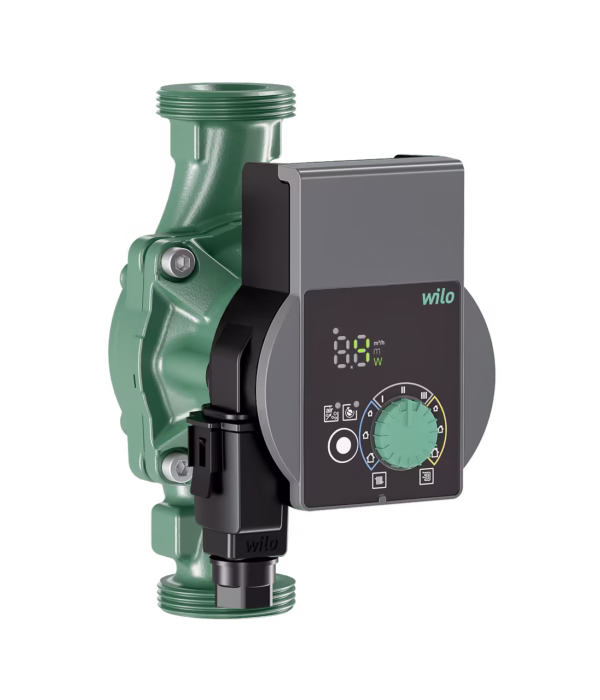

Wilo 4215517 Yonos PICO 25/1-8-180 Central Heating Pump

The Wilo Yonos PICO 25/1-8-180 is a high-efficiency inline pump that combines electronic precision with advanced features for optimal performance. This maintenance-free, glandless circulator with a screwed connection is designed to meet the demands of heating and air-conditioning applications, offering versatility and reliability.

Key Features

• Highly effective and energy-efficient with EEI of ≤ 0.23 and ErP 2015 approval
• Compact design with plug & play wiring for easy installation
• Self-venting with integrated motor protection
• Automatic deblocking and restart function
• Selectable control modes and built-in electronic power control
• 1 1/2″ BSP M connection and 180 mm port-to-port measurement
• Operates on standard 230 V AC, 50 Hz supply
• Handles temperature range from -10 to 95°C
• Backed by a standard 5-year warranty

Specifications

• Max. head: 7.6 m
• Max. flow: 4.4 m³/h
• Max. operating pressure: 10 bar
• Power consumption: 4–75 W
• Connection: G 1½ (RP 1 DN 25)
• Port-to-port length: 180 mm
• Materials: Grey cast iron housing, PP-GF40 impeller, stainless steel shaft

Applications

Ideal for all heating and air-conditioning systems in residential and commercial settings, including radiators and underfloor heating.

What’s in the box

Wilo Yonos PICO 25/1-8-180 pump unit.
