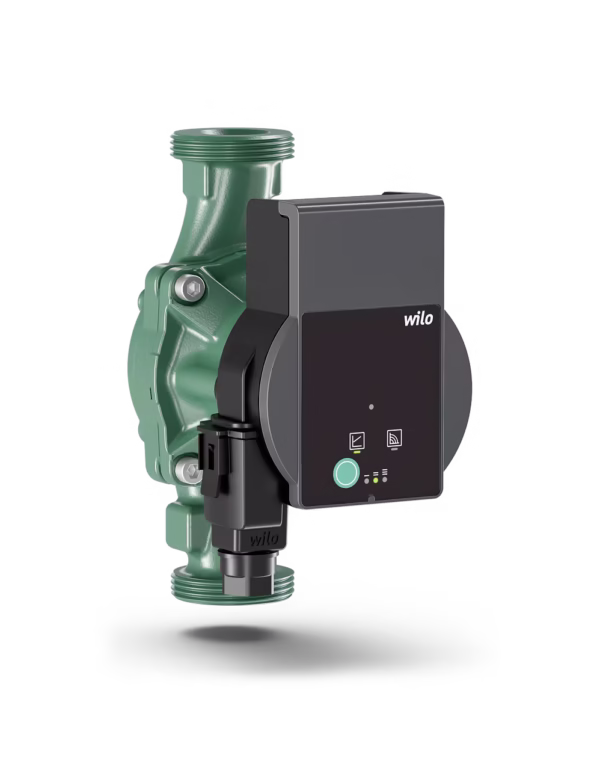

Wilo 4232696 Atmos Pico Pump 25/1-8-130

High-efficiency pump Wilo-Atmos PICO, electronically controlled. Maintenance-free glandless circulator with screwed connection, blocking-current proof synchronous motor according to ECM technology and built-in electronic power control for variable differential pressure control. Can be used for all heating and air-conditioning applications.

Key Features

• Preselectable control modes: Variable differential pressure (Δp-v) with 3 pre-defined characteristic curves; Constant speed (3 constant speed stages)
• LED display of selected control mode and characteristic curve
• Signal display with green LED for normal operation and fault indication
• Minimal consumption only 4 W; Integrated motor protection; Automatic deblocking function; High starting torque

Specifications

• Max. operating pressure: 10 bar
• Fluid temperature range: -10 °C to 95 °C
• Ambient temperature range: -10 °C to 40 °C
• EEI: ≤0.23
• Power consumption: 4 W min to 75 W max
• Mains connection: 1~230 V ±10%, 50/60 Hz
• Port-to-port length: 180 mm
• Pipe connections: G 1½

Materials

• Pump housing: Grey cast iron
• Impeller: PP-GF40
• Shaft: Stainless steel
• Bearing: Carbon, metal-impregnated

Applications

All heating and air-conditioning systems.

What’s in the box

Wilo Atmos PICO 25/1-8 pump.
