Viva SSH9 15mm x 3/4" BSP Flexible Bath Tap Connector 300mm

Viva SSH6 22mm x 3/4″ BSP Flexible Bath Tap Connector with Isolator Valve 300mm

  • SKU 6VIV0920
  • MPN SSH6
  • EAN 5060262730218

300mm stainless steel braided flexible hose with 22mm isolator compression fitting and 3/4″ female BSP thread, rated 10 bar and -5°C to 90°C for bath tap connections.

£4.57 (inc VAT)£3.81 (ex VAT)

17 in stock

17 in stock

More of this item can be ordered on backorder,

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

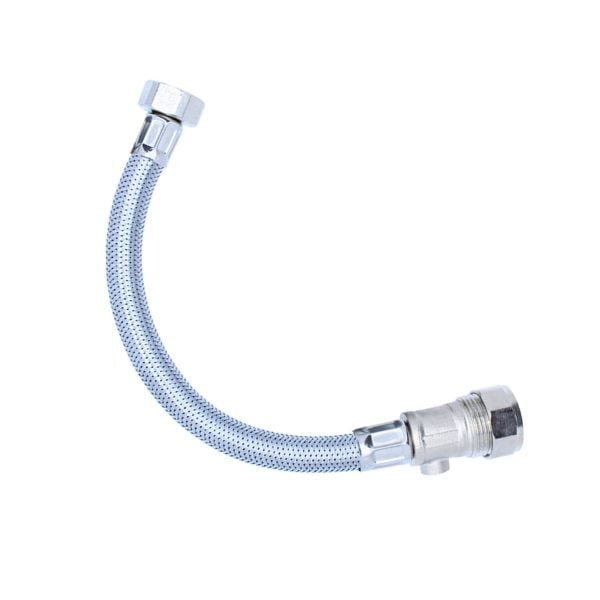

A 300mm long stainless steel braided flexible hose with a 22mm isolator compression fitting at one end and a 3/4″ female BSP thread at the other end. This hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.

Key Features

  • Stainless steel braided EPDM hose
  • 22mm isolator compression x 3/4″ BSP female
  • 300mm length
  • 10 bar working pressure
  • -5°C to 90°C working temperature

Specifications

  • Length: 300mm
  • Bore size: 13mm
  • Hose diameter: 17mm
  • Standard: EN1254-2
  • Working pressure: 10 bar
  • Working temperature: -5°C to 90°C

Applications

Ideal for connecting 22mm supply pipes to 3/4″ bath taps with built-in isolation.

What’s in the box

1 x Viva SSH6 flexible bath tap connector

Specifications

Length300mm
Bore size13mm
Hose diameter17mm
Thread size3/4" BSP female
Working pressure10 bar
Working temperature-5°C to 90°C
StandardEN1254-2

Product details

Weight 0.22 kg
Dimensions 30 × 3.26 × 3.26 cm
Material

304 stainless steel over braided EPDM rubber
SKU 6VIV0920
EAN / Barcode 5060262730218
