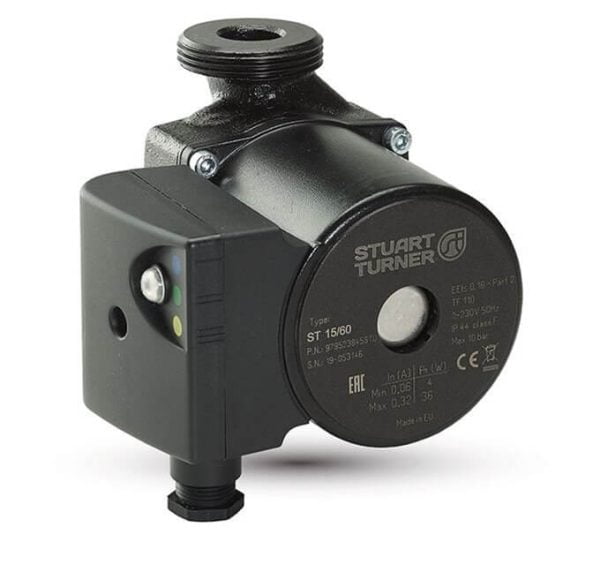

Stuart Turner ST 15/60 (130) heating circulator pump
Stuart Turner

Stuart 47073 Turner ST15/60 130 Heating Circulator Pump 230v

  • SKU 5SPT0010
  • MPN ST15/60-130
  • EAN 5050400470731

The Stuart Turner ST 15/60 (130) is a high-efficiency cast iron heating circulator pump with EEI rating of 0.18, suitable for new or replacement use in domestic heating systems.

£110.00 (inc VAT)£91.67 (ex VAT)

Out of stock

Out of stock

Want to be notified when this product is back in stock?

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

The Stuart Turner ST 15/60 (130) Circulator features the latest in high efficiency technology offering an EEI rating of just 0.18 and proportional pressure control. For use in new systems or as a replacement unit, this cast iron circulator is suitable for domestic heating systems.

This product is an ideal replacement for: Grundfos UPS2 15/50-60, Wilo Yonos Pico 25/1/6, Dab Evosta 40/70 130, CPL CP60, Grundfos UPS3 15/65.

Key Features

  • ECM permanent magnet technology
  • Constant speed (3 settings)
  • Proportional pressure control
  • Automatic venting cycle
  • Robust cast iron housing
  • Continuously rated
  • Ceramic bearings
  • 130 mm fitting length
  • EuP/ErP compliant
  • 5 year warranty

Specifications

  • Fitting length: 130 mm
  • Maximum head: 5.8 m
  • Maximum flow: 3.3 m³/h
  • Power consumption: 36 W max
  • EEI: 0.18
  • Connections: Rp 1½”
  • Weight: 2.2 kg

Applications

Domestic central heating systems.

What’s in the box

Stuart Turner ST 15/60 (130) Circulator Pump.

Specifications

Fitting length130 mm
Maximum head5.8 m
Maximum flow3.3 m³/h
Power consumption36 W max
EEI0.18
Pump connectionsRp 1½"
Weight2.2 kg

Product details

Weight 2.3 kg
Material

Cast iron
SKU 5SPT0010
EAN / Barcode 5050400470731
