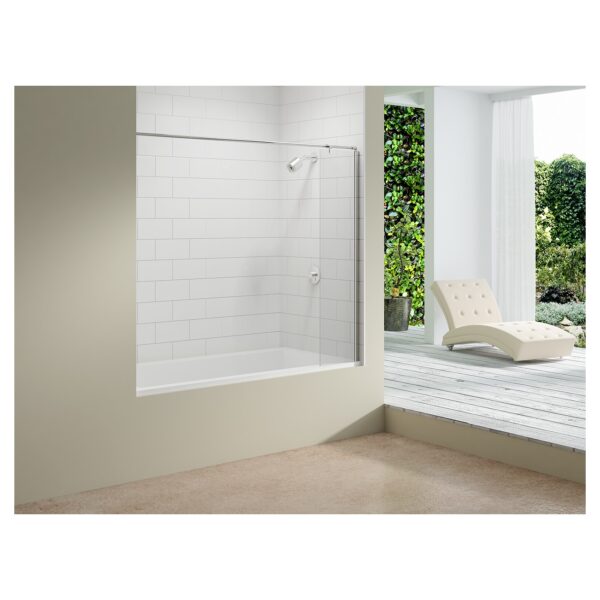

Merlyn MB5A 300 x 1500 Chrome Curtain Rail Bathscreen

The Merlyn MB5A is a fixed-panel curtain rail bathscreen for fitting in a recess, with the screen sitting inside the bath edge. A 300 mm clear glass panel is paired with a chrome curtain rail so the bathing area can be screened without a hinged door.

It suits domestic bath replacements and new installs where a slim fixed panel is enough and the rail can be cut to the wall-to-wall measurement. Handing is reversible, so the same screen can be planned for either end of the bath.

The panel is 6 mm toughened safety glass with chrome metalwork. Merlyn states a lifetime guarantee, and the fitting instructions reference EN 14428.

Key Features

• Order code MB5A curtain rail bathscreen
• 300 x 1500 mm fixed clear glass panel
• 1800 mm curtain rail, cut to suit the recess
• Overall height 1550 mm including the rail
• 6 mm toughened safety glass
• Chrome finish and clear glass
• Reversible handing
• Recess adjustment 300–320 mm
• Lifetime guarantee
• EN 14428 referenced on the fitting instructions

Benefits

• Screens the bath with a slim fixed panel rather than a hinged door
• Chrome rail gives a place to hang a shower curtain over the open bath
• Reversible design avoids ordering separate left- and right-hand screens
• 1800 mm rail can be cut 30 mm short of the wall-to-wall measurement
• 300–320 mm recess adjustment helps the panel sit in a tight alcove
• 6 mm toughened safety glass is the stated glazing for this screen
• Inside-bath-edge fitting keeps the screen aligned with the bath rim
• Lifetime guarantee is stated by Merlyn for this code

Technical Specifications

• MPN: MB5A
• Panel size: 300 x 1500 mm
• Fixed panel width: 300 mm
• Curtain rail length: 1800 mm
• Height including rail: 1550 mm
• Recess adjustment: 300–320 mm
• Glass thickness: 6 mm
• Glass type: Toughened safety glass
• Glass finish: Clear
• Colour: Chrome
• Handing: Reversible
• Panel type: Fixed panel
• Guarantee: Lifetime
• Standard: EN 14428
• Market: UK, NI

What’s in the Box?

• 1 x Merlyn MB5A curtain rail bathscreen (fixed glass panel and curtain rail)
• Fixing kit components referenced in the instructions, including wall profile MOBY021, 4 x 40 mm screws, wedge seal and wall plugs
