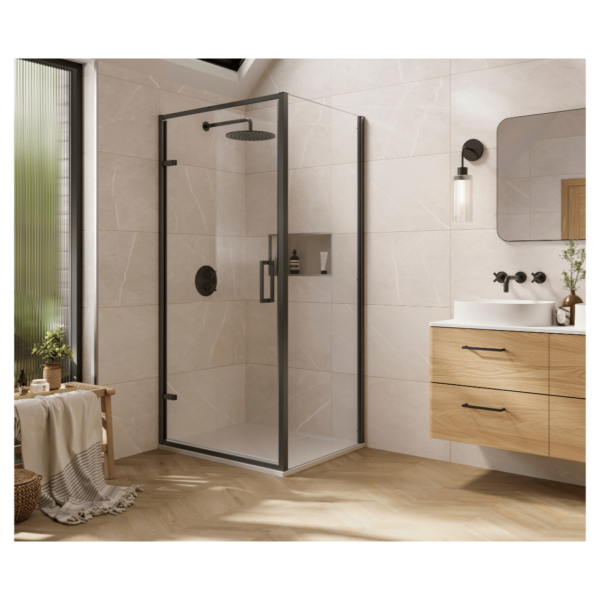

Merlyn AH80BGM 800mm Arysto Sleek Hinge Door Brushed Gun Metal

The Merlyn AH80BGM is an Arysto Sleek hinge shower door finished in brushed gun metal, made for an 800 mm opening with 8 mm clear glass and a 1950 mm height.

It suits domestic bathrooms for a new enclosure or a like-for-like hinge-door replacement. Handing is reversible, so the same door can be set to open left or right.

The door adjusts to 750–790 mm in a recess and 753–793 mm with a side panel. The moving panel is 663 mm, the door opening is 645 mm and the swing is 665 mm.

Key Features

• 800 mm Arysto Sleek hinge door
• Brushed gun metal finish
• 8 mm clear glass
• 1950 mm height
• Reversible handing
• Recess adjustment 750–790 mm
• Side-panel adjustment 753–793 mm
• 645 mm door opening
• 665 mm door swing
• Lifetime guarantee

Benefits

• Gives a brushed gun metal finish on an 800 mm hinge door
• Reversible handing covers left- or right-hand opening
• Clear 8 mm glass keeps the enclosure bright
• Recess adjustment covers 750–790 mm
• Can be used with a side panel within 753–793 mm
• 1950 mm height suits a standard shower enclosure height
• Stated opening and swing help plan the wet-area clearance
• Lifetime guarantee covers the door for the long term

Technical Specifications

• MPN: AH80BGM
• Model: Arysto Sleek
• Size: 800 mm
• Height: 1950 mm
• Glass thickness: 8 mm
• Glass finish: Clear
• Colour: Brushed Gun Metal
• Handing: Reversible
• Adjustment in recess: 750-790 mm
• Adjustment with side panel: 753-793 mm
• Door opening in recess: 645 mm
• Door opening with side panel: 645 mm
• Door swing: 665 mm
• Moving panel: 663 mm
• Guarantee: Lifetime

What’s in the Box?

1 x Merlyn AH80BGM Arysto Sleek hinge door
