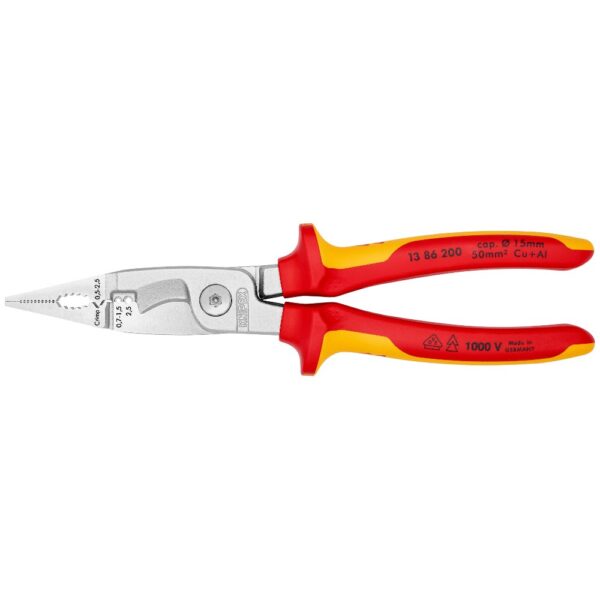

Knipex 13 86SB Pliers For Electrical Installation Insulated With Multi-Component Grips, VDE-Tested Chrome-Plated Flat Jaws 200mm Ø 15mm / 50mm²

The Knipex 13 86 200 SB are professional-grade VDE-insulated pliers designed specifically for electrical installation work. These 200 mm pliers combine six essential functions in a single compact tool: gripping flat and round material, bending, deburring, cable cutting, wire stripping and crimping end sleeves (ferrules).

Key Features

• Smooth surfaces near the tips for damage-free gripping of single cores; serrated gripping surfaces and pipe grip for flat and round material.
• Clear-cut outer edge on gripping surfaces for working in flush-mounted boxes and deburring feed-through holes.
• Stripping holes for conductors of 0.75–1.5 mm² and 2.5 mm².
• Crimping die for wire-end ferrules 0.5–2.5 mm².
• Induction-hardened precision cable shears for copper and aluminium cables up to 5 × 2.5 mm² / Ø 15 mm (50 mm²).
• Intelligent latching mechanism allows gripping without fully opening the pliers, keeping the cutting edge closed and protected.
• Slim design with bolted joint for precise, zero-backlash operation and easy access in confined spaces.

Specifications

• Length: 200 mm
• Head: chrome-plated forged vanadium electric steel, oil-hardened
• Handles: insulated multi-component grips, VDE-tested to 1000 V (IEC 60900 / DIN EN 60900)
• Weight: approx. 272–280 g
• Country of origin: Germany

Applications

Ideal for electricians performing live working up to 1000 V AC / 1500 V DC. Suitable for domestic, commercial and industrial electrical installation tasks including cable preparation, ferrule crimping and deburring.

What’s in the box

1 × Knipex 13 86 200 SB Pliers for Electrical Installation (blister packed)
