Inventive Creations CL9-1C 3/4 BSP Quarter Turn Ceramic Disc Cold Tap Cartridge

  • SKU 6WCZ2490
  • EAN 5060904520764

Restore reliable drip-free performance to your taps with the Inventive Creations CL9-1C 3/4 inch cold water ceramic disc cartridge. This genuine replacement delivers smooth quarter-turn operation in compatible bath and basin taps. Suited to both DIY users and trade professionals replacing leaking or stiff quarter-turn fittings.

£15.30 (inc VAT)£12.75 (ex VAT)

Out of stock

Out of stock

Want to be notified when this product is back in stock?

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

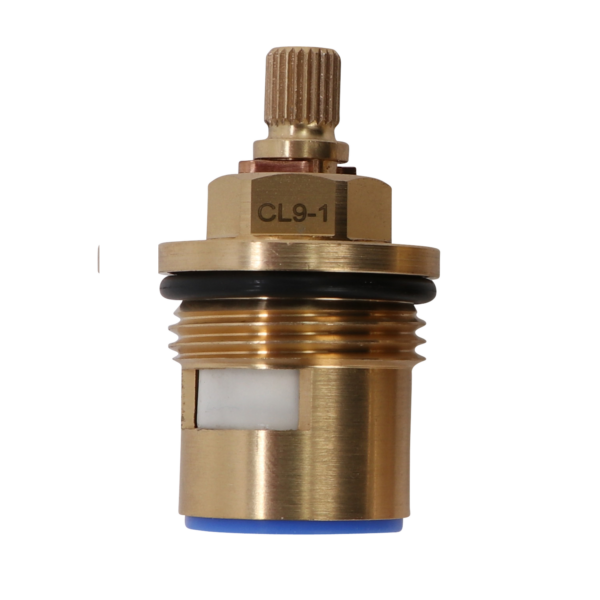

The Inventive Creations CL9-1C is a single cold-side replacement cartridge for 3/4 inch threaded tap bodies. It features a precision ceramic disc mechanism for smooth quarter-turn operation and long-lasting leak-free performance.

This cartridge suits domestic and light commercial installations on UK monobloc and pillar taps. It is ideal for both new installations and repairs where the CL9-1 spline profile is required.

Built with brass construction and ceramic discs, it offers durability and consistent performance in everyday use.

Key Features

  • Quarter-turn ceramic disc technology for precise flow control
  • Designed specifically for the cold water side with blue bottom seal
  • Standard 3/4 inch BSP threaded body
  • CL9-1 spline profile with 24 teeth
  • Brass construction with ceramic discs for durability
  • Total length including bottom seal: 49.8 mm
  • Length from thread collar to spline top: 23.5 mm
  • Diameter at widest point: 29 mm
  • Top spline diameter: 7.8 mm
  • Operation anticlockwise to open, clockwise to close

Benefits

  • ✔ Eliminates drips and leaks from worn tap cartridges
  • ✔ Provides smooth and effortless quarter-turn operation
  • ✔ Matches original CL9-1 spline for direct fitment
  • ✔ Long-lasting ceramic disc mechanism resists wear
  • ✔ Brass body ensures robust and reliable performance
  • ✔ Quick and straightforward replacement for compatible taps
  • ✔ Suitable for both DIY and professional installations
  • ✔ Maintains correct cold water identification with blue seal

Technical Specifications

  • Brand: Inventive Creations
  • MPN: CL9-1C
  • Product Type: Ceramic disc tap cartridge (cold)
  • Application: Bath and basin taps
  • Material: Brass with ceramic discs
  • Thread Size: 3/4 inch BSP
  • Spline Profile: CL9-1 (24 teeth)
  • Spline Diameter: 7.8 mm
  • Total Length: 49.8 mm
  • Widest Diameter: 29 mm
  • Operation: Quarter turn
  • Suitable For: Compatible quarter-turn taps
  • Usage: Replacement cartridge
  • Pack Quantity: 1

What’s in the Box?

1 x Inventive Creations CL9-1C cold cartridge

Specifications

Thread size3/4" BSP
OperationQuarter turn
Spline profileCL9-1 (24 teeth)
Spline diameter7.8 mm
Total length49.8 mm
Widest diameter29 mm
MaterialBrass with ceramic discs

Product details

Weight .2 kg
MPN

CL9-1C
Fitting Size

3/4"
Material

Brass with ceramic discs
SKU 6WCZ2490
EAN / Barcode 5060904520764
