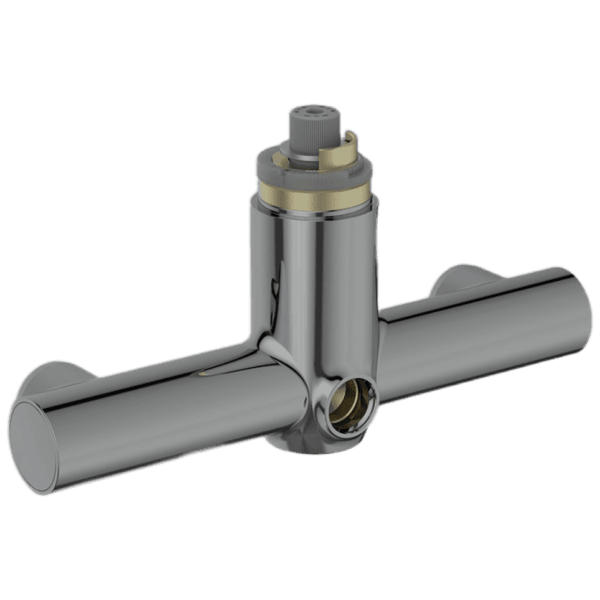

Ideal A7910AA Markwik 21+ Comfort SQ Panel Mounted Mixer

Part of the new M21+ Comfort SQ range of Pressure balance valve products, these panel and deck mounted ‘body only’ options enable an existing M21 or M21+ thermostatic installation to be changed over to a pressure balance installation in a more cost-effective way compared to a full tap replacement. Designed specifically for handwashing, they dispense safe water ranging from ambient cold to a predetermined maximum hot temperature. Packed with fantastic features, benefits and design considerations that help combat infection control within hospital and healthcare environments.

Key Features

• Compatible with M21 and M21+ installations requiring PBV switch over
• Demountable body for disinfection
• New 38mm sequential manual ceramic disc cartridge
• Ceramic Pressure Balance Valve with smooth hygienic surfaces
• Brass port sleeves
• Override feature for thermal disinfection
• Temperature limiting device
• Smooth, narrow bore, low water inventory waterways
• Cool body technology
• Suitable for high and low pressure installations (from 0.2 – 5 bar)
• HTM 04-01 compliant

Specifications

• Dimensions: 258 mm width x 51 mm projection x 145 mm height
• Material: Brass
• Finish: Chrome (SmartShine)
• Flow rate: 7 l/min at 3 bar
• Operating pressure: 0.2 – 5 bar
• Net weight: 1.71 kg
• Mounting: Panel mounted, backnut fixing
• Operation: Manual sequential lever, non-thermostatic PBV

Applications

Healthcare and hospital environments for hygienic handwashing.

What’s in the box

Panel mounted mixer body only (detachable spout not included; compatible with separate spout options).
