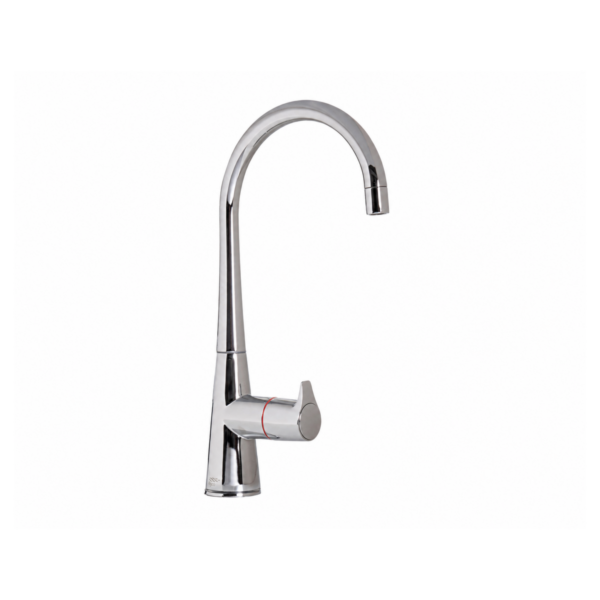

Hyco SPA3L Zen Spa 3L Boiling And Ambient Tap

The Hyco SPA3L Zen Spa is a 2-in-1 boiling and drinking-water tap with a 3 litre boiling tank. It dispenses instant boiling water for tea and coffee and filtered ambient drinking water from a single polished chrome tap.

It suits new installations and replacements in homes, offices and workplaces, either over a standard sink or with a Zen Font drinks station. Ambient models connect directly to the incoming mains supply and do not include an undersink chiller.

The tap has a cool-touch 360° swivel spout and a safety lock on the boiling side. The tank uses grade 316L stainless steel, an Incoloy element and aerogel insulation, and is designed and assembled in the UK.

Key Features

• 2-in-1 tap: boiling water and filtered ambient drinking water
• 3 litre boiling tank, factory set at 100°C with a 98°C option
• Polished chrome finish as standard
• Power rating 1.60 kW, heat-up about 12 minutes
• Standing loss 17 W (0.42 kWh/day) for the boiling tank
• Initial draw-off 18 cups or 12 mugs; recovery 90 cups or 60 mugs per hour
• Flow rate over 3 litres per minute
• Safety lock, cool-touch spout and 360° swivel spout
• Pattern recognition to learn and predict boiling-water use
• Scale filter and cold drinking-water filter supplied

Benefits

• Gives boiling water and filtered ambient water from one tap, freeing worktop space
• Replaces a kettle at home or a wall-mounted boiling unit in an office
• Heats a 3 litre tank in about 12 minutes from cold
• Uses only 17 W standing loss, so the tank is efficient when idle
• Delivers more than 3 litres per minute for quick drinks
• Locks the boiling side so cold water can be drawn without releasing the lock
• Fits a standard 32 mm sink hole in worktops up to 50 mm thick
• Ships with the scale filter, drinking-water filter, expansion vessel and pressure relief valve needed for installation

Technical Specifications

• Product code: SPA3L
• Tank capacity: 3 litres
• Power: 1.60 kW
• Supply: 230 V ~ 50 Hz
• Flow rate: Over 3 L/min
• Temperature settings: 100°C factory set, or 98°C
• Tap finish: Polished chrome
• Water tank: Grade 316L stainless steel
• Tank casing: High-impact PC/ABS
• Heating element: Incoloy
• Insulation: Aerogel
• IP rating: IPX1
• Minimum water pressure: 1 bar
• Maximum water pressure: 4.2 bar
• Mounting hole: 32 mm
• Maximum worktop thickness: 50 mm
• Approvals: CE, UKCA, NSF REG4
• Warranty: 2 years parts or replacement
• Origin: Designed and assembled in the UK

What’s in the Box?

• 1 x Zen Spa tap
• 1 x 3 litre Zen boiling tank
• 1 x manifold
• 1 x expansion vessel with fixing bracket and metal band
• 1 x pressure relief valve
• 1 x scale filter
• 1 x cold drinking-water filter
• Hoses: manifold to expansion vessel, manifold to tank, and tank to tap
• 1 x 3-way 3/8 in to 1/4 in push-fit fitting
• 1/4 in x 1/4 in push-fit connector
• 2 x 1/2 in BSP to 15 mm fittings
• 2 x 1/2 in female to 3/8 in push-fit connectors
• 2 x black rubber washers
• 1 x large and 3 x small white washers
• 1.5 m of 1/4 in and 3/8 in tubing
• 6 x large locking collars and 5 x small locking collars
• 1 x pre-wired 1 m BS plug
