Hyco SOLO6L 6 Litre Polished Chrome Zen Solo Tap

The Hyco SOLO6L Zen Solo is a dedicated instant boiling water tap with a 6 litre under-counter tank. It supplies boiling water on demand for hot drinks and food preparation, so a kettle or a countertop or wall-mounted boiling unit is not needed.

It suits new installs and replacements in homes and workplaces. The tap mounts through a standard 32 mm sink or worktop hole, or it can be paired with a Zen Font with Drain for a dedicated drinks station. The tank is a storage heater and does not give a continuous flow of boiling water.

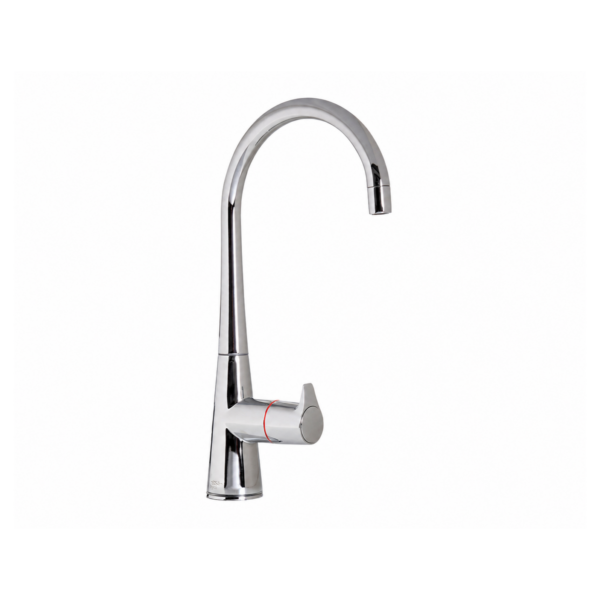

The tap is polished chrome with a cool-touch insulated spout, safety lock and 360° swivel. The 6 litre tank has a grade 316L stainless steel vessel, Incoloy element and aerogel insulation, and is designed and assembled in the UK.

Key Features

• Dedicated instant boiling water tap with 6 litre tank
• Polished chrome finish as standard; other finishes at extra cost
• 2.84 kW element; about 14 minutes heat-up from cold
• Standing loss 20 W (0.50 kWh/day)
• Smart algorithms learn and predict usage
• Flow over 3 litres per minute; initial draw-off 36 cups or 24 mugs
• Status ring shows heating (red) or ready (green)
• 360° swivel, cool-touch spout and safety lock
• Factory set to 100°C; can be switched to 98°C
• Supplied with scale filter, expansion vessel and pressure relief valve

Benefits

• Boiling water on demand for tea, coffee and cooking without waiting for a kettle
• Frees worktop space by removing the need for a kettle or separate boiler
• 6 litre capacity suits busier kitchens, with 160 cups or 107 mugs recovery per hour
• Low standing loss reduces energy used while the tank is holding temperature
• Usage learning keeps the tank ready when it is likely to be used and sleeps when it is not
• Safety lock and cool-touch spout reduce the chance of accidental dispensing
• Pre-wired 1 m BS plug simplifies the electrical connection
• UK design and assembly with CE, UKCA and NSF REG4 approvals
• 2-year parts or replacement warranty when the supplied scale filter is fitted and maintained

Technical Specifications

• MPN: SOLO6L
• Capacity: 6 litres
• Power: 2.84 kW
• Supply: 230 V ~ 50 Hz
• Heat-up time: 14 minutes
• Standing loss: 20 W (0.50 kWh/day)
• Flow rate: Over 3 l/min
• Factory temperature: 100°C (switchable to 98°C)
• Minimum water pressure: 1 bar
• Maximum water pressure: 4.2 bar
• Maximum tank pressure: 6 bar
• Tap finish: Polished chrome
• Water tank: Grade 316L stainless steel
• Tank casing: PC/ABS
• Heating element: Incoloy
• Insulation: Aerogel
• IP rating: IPX1
• Mounting hole: 32 mm
• Maximum worktop thickness: 50 mm
• Ambient temperature: 5–35°C
• Electrical connection: Pre-wired 1 m BS plug
• Approvals: CE, UKCA, NSF REG4
• Warranty: 2 years parts or replacement
• Origin: Designed and assembled in the UK

What’s in the Box?

• 1 x Zen Solo tap
• 1 x 6 litre Zen boiling tank
• 1 x manifold
• 1 x expansion vessel with fixing bracket and metal band
• 1 x pressure relief valve
• 1 x inlet scale filter
• 1 x 1.5 m x 3/8 inch tubing
• 1 x hose, manifold to expansion vessel
• 1 x hose, manifold to tank
• 1 x hose, tank to tap
• 2 x 1/2 inch BSP to 15 mm fittings
• 2 x 1/2 inch female to 3/8 inch push-fit connectors
• 4 x large locking collars
• 2 x black rubber washers
• 1 x large white washer and 3 x small white washers
