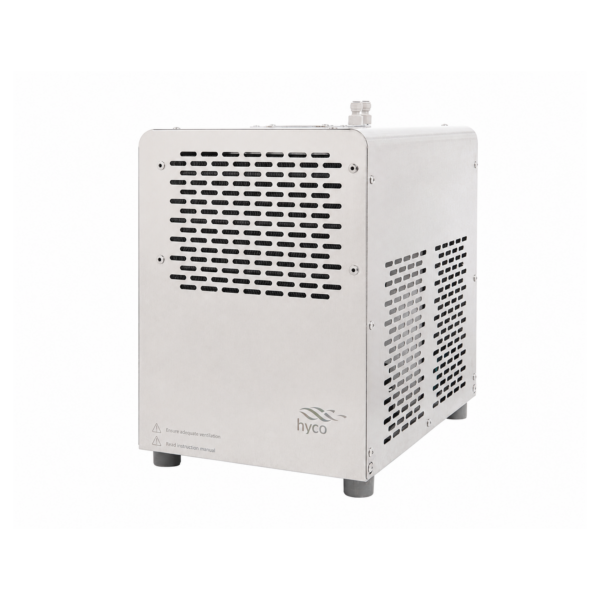

Hyco SAPUC1 Sapphire Undersink Water Chiller 20 L/H

The Hyco SAPUC1 Sapphire is an undersink water chiller for instant chilled drinking water. It is plumbed directly to the cold mains and used with a counter-mounted drinking water tap and filter, so the unit itself stays out of sight under the worktop.

It suits offices, staff kitchens and other commercial or similar household environments where a floor-standing bottle cooler would take up space. It is intended for permanent installation by a competent person, not for outdoor or damp locations.

The casing is metal and the refrigeration circuit uses R290. Chilled water temperature is adjustable, with a stated chill capacity of 20 litres an hour and 3 litres of immediate draw-off.

Key Features

• Undersink chiller, product code SAPUC1, for use with a separate counter-mounted tap and filter
• Chill capacity of 20 litres an hour, stated as 120 glasses of 167 ml
• 3 litres immediate draw-off
• Flow rate of 2 L/min when used with a Zen tap and connected to an F1T filter
• 1/4 inch push-fit inlet and outlet; brass adapter supplied for 15 mm copper mains
• Metal outer casing; refrigerant R290, 60 g
• 200 W, 230 V, 0.9 A, IP20, Class I, supplied with a 1.85 m pre-wired BS plug lead
• CE, UKCA and WRAS approvals; designed for a standard kitchen undersink cupboard

Benefits

• Gives a plumbed chilled-water supply without a floor-standing cooler
• Fits discreetly in a standard undersink cupboard and frees floor space
• Connects to the mains, avoiding the running cost of bottled coolers
• Provides 3 litres ready to draw before the tank needs to recover
• Lets the set point be adjusted rather than fixed at one temperature
• Push-fit 1/4 inch connections and a 15 mm adapter simplify the pipe run
• Supplied lead and BS plug avoid a separate flex being made up on site
• WRAS approval supports use on a drinking-water installation
• Helps cut single-use plastic compared with bottle-fed coolers

Technical Specifications

• MPN: SAPUC1
• Chill capacity: 20 litres/hour
• Glasses per hour: 120 glasses/h (167 ml glass)
• Immediate draw-off: 3 L
• Cooling capacity condition: 20 L/h below 10°C
• Flow rate: 2 L/min with Zen tap and F1T filter
• Power: 200 W (0.2 kW)
• Current: 0.9 A
• Voltage: 230 V
• IP rating: IP20
• Electrical class: Class I
• Outer casing: Metal
• Inlet and outlet: 1/4 inch push-fit
• Supply pressure: 1 bar minimum, 3 bar maximum
• Dimensions (H x W x D): 370 x 265 x 360 mm
• Weight: 13 kg
• Ambient installation temperature: 10°C to 38°C
• Electrical connection: Pre-wired 1.85 m black kettle lead with BS plug
• Approvals: CE, UKCA, WRAS
• Maintenance: Sanitise every 3 to 6 months; change drinking water filter about every 6 months

What’s in the Box?

• 1 x Hyco SAPUC1 Sapphire undersink water chiller
• 1 x pre-wired 1.85 m black kettle lead with BS plug
• 1/4 inch pipe to be cut to length
• 1 x brass adapter and plastic connector for 15 mm copper mains pipe
• 2 x connectors for the water inlet and outlet, with 2 black washers
• Locking collars for the three plastic connectors
