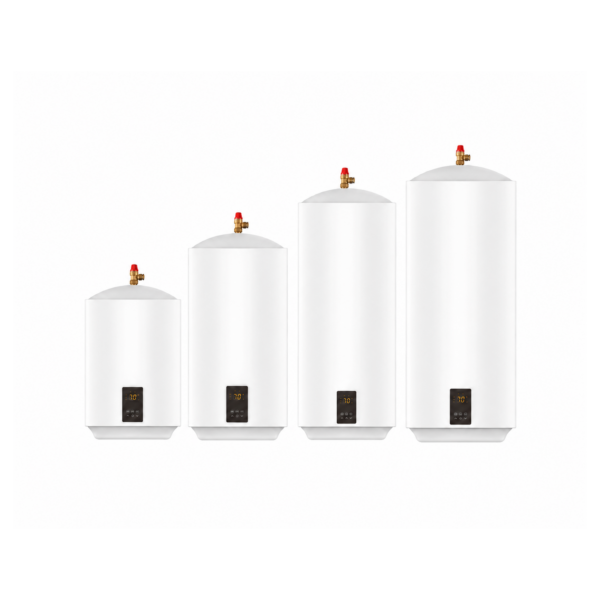

Hyco PF100S 100L 3kW Powerflow Smart Unvented Water Heater

The Hyco PF100S is a wall-mounted 100 litre unvented multipoint water heater that stores hot water and delivers it at mains pressure to more than one outlet. Patented inlet technology keeps incoming cold water from mixing straight into the stored hot water, so more usable hot water is available.

It suits kitchens, schools, restaurants, washrooms, healthcare settings and offices, and light domestic use such as one bedroom with one shower or about 7 to 11 basins, depending on demand. Three operating modes — standard, smart and eco — plus external electronic temperature control help match output to use.

The tank is glass-lined steel with CFC-free high-density polyurethane insulation and a replaceable magnesium anode. The white powder-coated casing is slimline, connections are at the base, and an unvented accessory kit is supplied and must be fitted.

Key Features

• 100 litre unvented multipoint storage heater
• 3 kW stainless steel Incoloy element
• Standard, smart and eco modes, with eco at 50°C
• Electronic thermostat adjustable from 30°C to 70°C
• Patented cold-inlet design to limit immediate mixing with stored hot water
• Glass-lined steel tank and replaceable grey magnesium anode
• ErP rating B; standing loss 1.41 kWh/day
• Factory-fitted temperature and pressure relief valve
• Supplied unvented accessory kit including 8 litre expansion vessel
• Pre-wired 1.5 m cable and digital control panel with neon element-on indicator

Benefits

• Mains-pressure hot water to regular taps, including mixers, without a header tank
• More stored hot water stays available because incoming cold water does not mix in immediately
• Smart and eco modes support lower running cost on light commercial and domestic loads
• 82 minute heat-up at 3 kW
• External digital control avoids opening the casing to set temperature
• Slimline wall mounting with base connections suits tight plant spaces
• Supplied unvented kit includes the expansion vessel, inlet group, hose and tundishes
• Five-year tank warranty and two-year warranty on electrical parts

Technical Specifications

• Manufacturer part number: PF100S
• Capacity: 100 litres
• Power: 3 kW
• Heat-up time: 82 minutes
• Standing loss: 1.41 kWh/day
• ErP rating: B
• Thermostat range: 30-70°C
• Eco mode temperature: 50°C
• Water connection: 1/2 in BSP male, 100 mm centres
• Minimum water pressure: 1 bar
• Maximum pressure to pressure reducing valve: 12 bar
• Working water pressure: 3 bar
• Pressure reducing valve setting: 3 bar
• Pressure relief valve: 6 bar
• Temperature and pressure relief valve: 7 bar, 90°C
• IP rating: IPX4
• Outer casing: White powder-coated steel
• Heating element: Stainless steel Incoloy
• Water tank: Glass-lined steel
• Anode: Replaceable grey magnesium
• Insulation: High-density CFC-free polyurethane foam
• Expansion vessel: 8 litres
• Cable: 1.5 m pre-wired
• Approvals: CE, UKCA, KIWA Reg 4, G3 Building Regulations

What’s in the Box?

• 1 x Hyco PF100S 100 litre water heater with 1.5 m pre-wired cable
• 1 x 8 litre expansion vessel with fixing bracket
• 1 x inlet group manifold (pressure relief valve, pressure reducing valve, check valve and balanced cold take-off)
• 1 x flexible hose
• 2 x tundishes
