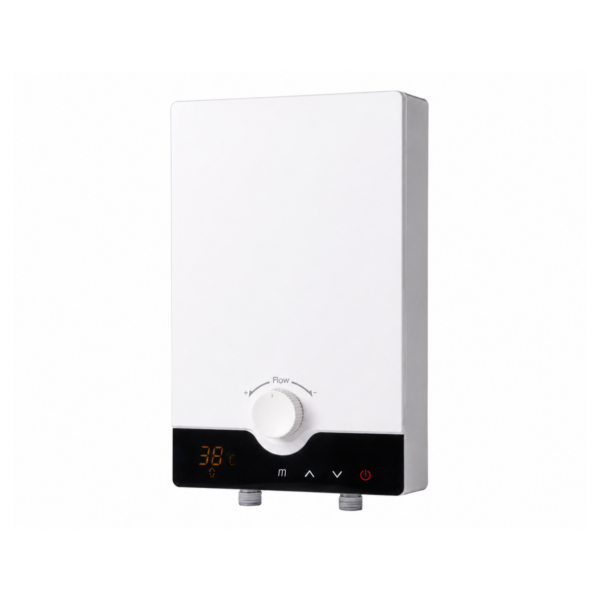

Hyco IN96T Aquila 9.6kW Thermostatic Instantaneous Water Heater

The Hyco IN96T Aquila is a slimline 9.6 kW instantaneous inline water heater with electronic thermostatic control. Water is heated as it flows through the unit, so there is no stored volume and no standing heat loss.

It is intended as a point-of-use heater for hand washing at up to two basins, light dishwashing at one sink, or a single light shower. It suits domestic and light commercial installations where a compact inline unit can sit close to the outlet.

The casing is easy-clean ABS, with two nickel-chrome bare-wire elements, a touch-screen temperature display and a flow dial. Heating power is adjusted electronically for changes in temperature, flow and pressure, and the last set outlet temperature is recalled after power is restored.

Key Features

• 9.6 kW single-phase instantaneous inline heater
• Electronic thermostatic control, factory set at 38°C and adjustable from 30°C to 60°C
• Bare-wire heating with two nickel-chrome elements for a fast heat-up
• LED display of temperature, actual flow rate and heating power
• One programmable memory setting and recall of the last outlet temperature
• Supplies one or two outlets depending on the application
• IPX4 rated; overheat protection at 75°C with manual reset
• 1/2 inch BSP male inlet and outlet, 100 mm apart centre to centre
• Suitable for spray-head taps with a removable M22/M24 nozzle, including the Hyco Vega infrared tap
• CE, UKCA and WRAS approved, with a 2 year parts or replacement warranty

Benefits

• Hot water is produced only while water is flowing, so standing heat losses are avoided
• Power is limited to what is needed to reach the chosen temperature
• The set temperature is held as flow, pressure and incoming temperature vary
• Slimline body, 90 mm deep
• The touch screen shows temperature, flow and heating power at a glance
• One memory setting stores a preferred temperature for repeat use
• It can serve up to two hand-wash basins, one light sink or one light shower
• Pre-heated inlet water, such as from solar, can be used up to 60°C
• WRAS approval supports connection to the mains water supply

Technical Specifications

• MPN: IN96T
• Power rating: 9.6 kW
• Temperature range: 30°C to 60°C
• Factory set temperature: 38°C
• Dimensions (H x W x D): 380 mm x 230 mm x 90 mm
• Depth excluding dial: 70 mm
• Weight empty: 2 kg
• IP rating: IPX4
• Water connection: 2 x 1/2 in BSP male, 100 mm centres
• Water pressure: 1 bar to 7.5 bar
• Minimum flow rate: 2.5 l/min
• Maximum flow rate: 5.2 l/min hand wash or shower; 3.7 l/min dishwashing
• Standing loss: 0.0 kWh/day
• Outer casing: ABS
• Heating element: Bare wire, two nickel-chrome elements
• Overheat protection: 75°C, manual reset
• Maximum inlet temperature: 60°C
• Electrical supply: Single phase
• Fuse rating guide: 42 A
• Minimum water resistivity: 1300 Ωcm
• Approvals: CE, UKCA, WRAS
• Warranty: 2 year parts or replacement

What’s in the Box?

1 x Hyco Aquila IN96T instantaneous inline water heater
