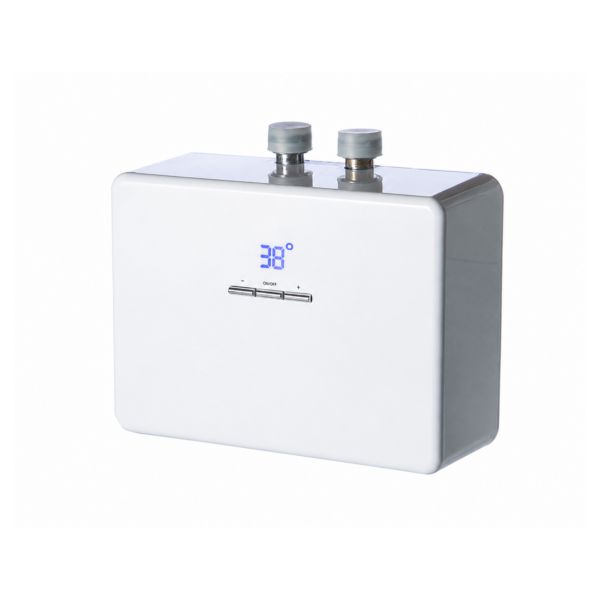

Hyco IN44T Rho 4.4kW Thermostatic Inline Water Heater

The Hyco IN44T is the thermostatic 4.4kW model in the Rho range of compact instantaneous inline water heaters. Water is heated as it passes through a bare-wire element, so there is no stored volume and no standing heat loss.

It is intended for hand washing at one basin in domestic or commercial washrooms, as a new point-of-use install or a local replacement where a cylinder or long pipe run is impractical. Thermostatic control adjusts heating power for temperature, flow and pressure, and recalls the last set outlet temperature after power is restored.

The casing is easy-clean high-impact ABS. Overheat protection operates at 80°C, and the unit is rated IPX4. It must be wired to the fixed installation by a suitably qualified person and sited in a frost-free place, as close as practical to the outlet.

Key Features

• 4.4kW thermostatic instantaneous inline heater for one outlet
• Heats water only as it flows, with zero standing heat loss
• User-adjustable outlet temperature from 30°C to 48°C, factory set at 38°C
• External electronic control accurate to the nearest degree, with blue LED display
• Bare-wire system with three nickel-chrome elements for fast heat-up
• Intended for spray-head taps with removable M22/M24 nozzles
• Suitable for use with the Hyco Vega infrared tap
• Not suitable for thermostatic mixing valves or a single-lever mixer tap
• 2 x 1/2 inch BSP male connections, 40mm apart; 0.7m pre-wired cable
• CE, UKCA and WRAS approved, with a 2-year parts or replacement warranty

Benefits

• Hot water on demand without a stored cylinder or standing losses
• Only the power needed for the chosen temperature is used
• Display and plus/minus controls make the set point easy to adjust
• Last outlet temperature is recalled after the power is switched off and on
• Compact body suits tight washroom and under-basin locations
• 2.5 litres per minute hand-wash flow is the stated best-performance rate
• Thermostatic model can accept preheated inlet water up to 48°C
• IPX4 rating and 80°C overheat protection support wet-area point-of-use use
• WRAS approval and a 2-year parts or replacement warranty

Technical Specifications

• MPN: IN44T
• Power rating: 4.4 kW
• Control: Thermostatic
• Temperature range: 30°C to 48°C
• Factory set temperature: 38°C
• Hand-wash flow rate: 2.5 l/m
• Standing loss: 0.0 kWh/day
• Temperature rise at 2.5 l/m: 25°C
• Minimum flow rate: 2.5 l/m
• Minimum water pressure: 1 bar
• Maximum rated pressure: 7.5 bar
• Water connections: 2 x 1/2 inch BSP male, 40 mm centres
• Outer casing: ABS
• Heating element: Bare wire, three nickel chrome elements
• IP rating: IPX4
• Overheat protection: 80°C
• Electrical supply: Single phase
• Fuse rating guide: 19 A
• Pre-wired cable: 0.7 m
• Maximum preheated inlet: 48°C
• Water resistivity: ≥ 1300 Ωcm
• Approvals: CE, UKCA, WRAS
• Warranty: 2 year parts or replacement

What’s in the Box?

1 x Hyco IN44T Rho thermostatic instantaneous inline water heater with 0.7m pre-wired cable
