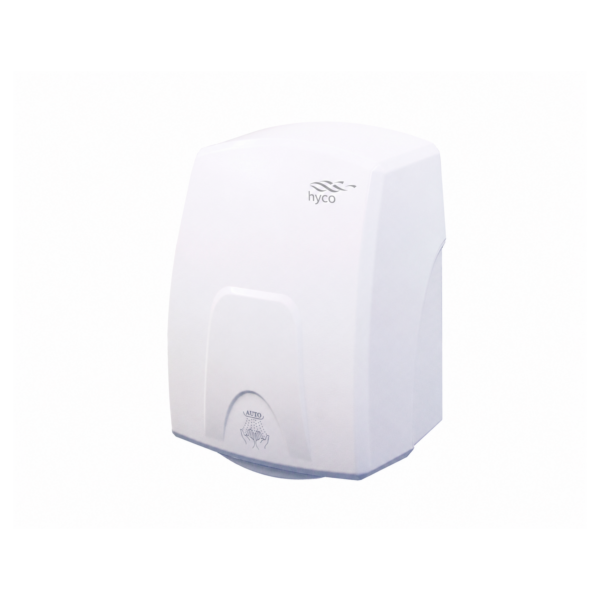

Hyco CTRW 1.5 kW White Automatic Hand Dryer

The Hyco CTRW Contour is a traditional 1.5 kW automatic hand dryer with touch-free operation and a compact, contemporary ABS case. It is intended for hygienic hand drying in offices, restaurants, shops and other public washrooms.

Low air speed and a 25-second dry time suit projects that specify a conventional dryer rather than a high-speed unit. A strong white ABS cover, overheat protection and a safety timer are designed for everyday commercial use.

The unit is pre-wired with a 1 m cable and supplied with a full fixing pack. It connects to the fixed wiring and must be installed by a qualified electrician.

Key Features

• Traditional 1.5 kW automatic hand dryer
• Touch-free operation
• Low air speed of 15 m/s and air volume of 88 m³/h
• 25-second dry time
• White durable ABS cover
• IP22 ingress protection
• Overheat protection and safety timer to prevent continuous running
• 1 m pre-wired cable and full fixing pack
• Class II construction with CE and UKCA approvals
• 3-year parts or replacement warranty

Benefits

• Touch-free start reduces contact and the risk of spreading germs
• Compact 253 x 198 x 145 mm body fits smaller washrooms
• White ABS cover is built for everyday commercial use
• Low-speed airflow suits a traditional hand-dryer specification
• Safety timer and overheat protection limit continuous running
• Pre-wired 1 m cable and fixing pack simplify installation
• Sensor range can be adjusted after the cover is removed
• Three-year parts or replacement warranty covers manufacturing defects

Technical Specifications

• MPN: CTRW
• Power rating: 1.5 kW
• Heating element: 1430 W
• Motor: 70 W, carbon brush
• Current: 6.5 A
• Air speed: 15 m/s
• Dry time: 25 seconds
• Sound level: 76 dB
• Energy use: 10.4 kWh per 1000 dries
• Dimensions: 253 x 198 x 145 mm
• Height: 253 mm
• Width: 198 mm
• Depth: 145 mm
• Weight: 1.7 kg
• IP rating: IP22
• Finish: White
• Outer casing: ABS
• Operation: Touch-free automatic
• Electrical class: Class II
• Supply cable: 1 m, pre-wired
• Approvals: CE, UKCA
• Warranty: 3 year parts or replacement

What’s in the Box?

• 1 x Hyco CTRW Contour automatic hand dryer
• 1 x full fixing pack
• 1 x Allen key for the cover screws
• 1 m pre-wired supply cable
