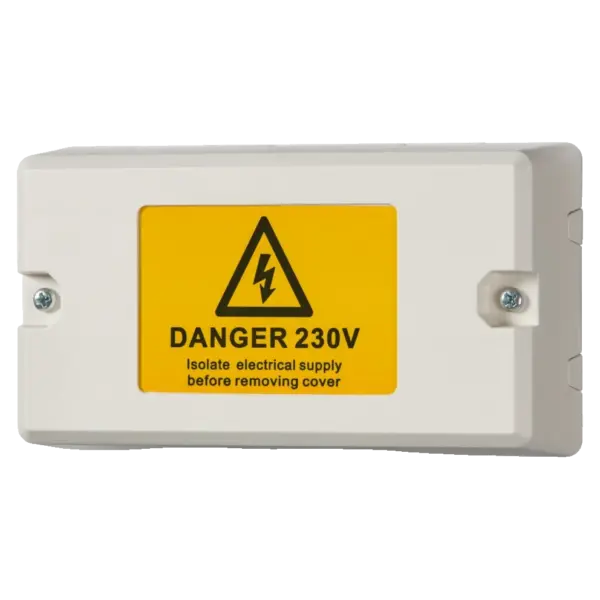

ESi WC-1 12 Way Wiring Centre for Central Heating Systems

The ESi WC-1 (also known as ESWC1) is a 12-way wiring centre designed for safe and convenient connection of central heating system components. It suits system and heat-only boiler installations in domestic properties and is ideal for professional installers seeking to reduce time on site.

Manufactured in a robust fire-retardant ABS enclosure with dedicated terminal blocks for each component, the unit features larger terminals for live, common and neutral connections. It provides a neat, reliable method of system wiring and circuit testing while complying with relevant safety standards.

Key Features

• 12-way terminal block with larger blocks for live, common and neutral
• Dedicated terminal block for each system component
• Robust fire-retardant ABS enclosure
• Simplifies wiring and circuit testing
• Suitable for all popular heating systems
• Easy and quick to install
• IP20 protection rating
• 230V 50/60Hz voltage rating
• 10A contact rating
• 2A fuse rating

Benefits

• ✔ Reduces installer time on site
• ✔ Provides safe, neat means of connection
• ✔ Dedicated terminals prevent wiring errors
• ✔ Fire-retardant material for added safety
• ✔ Larger terminals accommodate more connections
• ✔ Compatible with system and heat-only boilers
• ✔ Complies with BS EN 60730 standards
• ✔ Professional finish for domestic installations

Technical Specifications

• MPN: WC-1 / ESWC1
• Ways: 12
• Voltage Rating: 230V 50/60Hz
• Current Rating: 10A
• Fuse Rating: 2A 230V 50Hz
• Protection Rating: IP20
• Maximum Ambient Temperature: 55°C
• Material: Fire-retardant ABS
• Maximum Current – PCB: 5A 230V 50Hz

What’s in the Box?

1 x ESi WC-1 Wiring Centre
