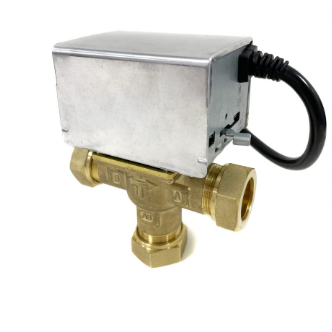

EPH B328MID 3 Port 28mm Mid Pos / Diverter Valve
EPH

EPH B328MID 3 Port 28mm Mid Pos / Diverter Valve

  • SKU 7CVF0070
  • MPN B328MID
  • EAN 5391515072558

EPH B328MID  28mm 3-port mid-position motorised diverter valve for zoning central heating and hot water circuits.

£82.80 (inc VAT)£69.00 (ex VAT)

Out of stock

Out of stock

Want to be notified when this product is back in stock?

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

The EPH B328MID is a 28mm compression 3-port mid-position motorised valve designed for use in heating systems and cold water applications. It features a detachable actuator with manual override and can also function as a diverter valve.

Key Features

  • 28mm compression connections
  • Detachable actuator with 1.2m cable
  • 230V operation with spring return
  • Manual override lever for system filling/draining
  • Suitable for mid-position or diverting applications

Specifications

  • Kvs: 6.8 m³/h
  • Max close-off pressure: 1.2 bar (Port A), 0.8 bar (Port B)
  • Max static/operating pressure: 21 bar
  • Operating temperature: 2–88°C
  • Power consumption: 5W
  • Protection rating: IP20
  • Dimensions (approx.): 124mm (L) x 142mm (H)

Applications

Ideal for central heating and hot water zoning in domestic systems.

What’s in the box

Valve body with compression fittings, actuator head, 1.2m cable, fixing screws.

Specifications

Connection size28mm compression
Kvs6.8 m³/h
Max close-off pressure1.2 bar (Port A), 0.8 bar (Port B)
Max static pressure21 bar
Operating temperature2–88°C
Power consumption5W
Protection ratingIP20

Product details

Weight 1.31 kg
Fitting Size

28mm compression
Brand

EPH
MPN

B328MID
SKU 7CVF0070
EAN / Barcode 5391515072558
