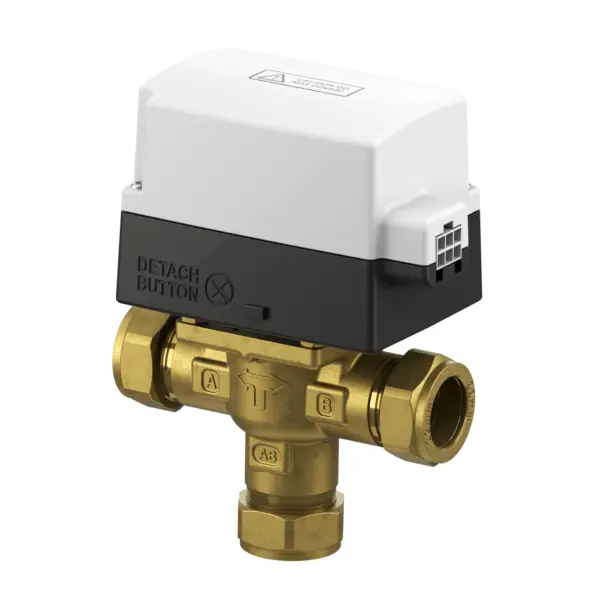

EPH B322PF 22mm Compression 3 Port Motorised Valve

The EPH B322PF is a 22mm compression 3-port motorised valve designed for zoning hot water or central heating circuits in domestic systems. It replaces the older B322MID model and comes with a detachable actuator and cable for straightforward installation and servicing.

Suitable for trade installers and competent DIY users, this valve offers dependable performance with a motor made in the USA and full CE UK CA certification. The product carries a 5-year warranty from EPH Controls.

Key Features

• 22mm compression connections
• Detachable actuator and cable
• Flow rate of 7.1 kvs
• Maximum close-off pressure 0.7 bar
• Contact rating 5(2)A 230Vac
• Maximum ambient temperature 50°C
• Maximum fluid temperature 88°C
• 5-year warranty
• CE UK CA certified
• Motor made in USA

Benefits

• Precise zoning of heating and hot water circuits
• Easy maintenance with detachable actuator
• Reliable operation in UK domestic systems
• Simple installation with compression fittings
• Long-term durability backed by manufacturer warranty
• Compatible with standard 230V controls

Technical Specifications

• MPN: B322PF
• Connection Type: 22mm Compression
• Flow Rate: 7.1 kvs
• Max Close Off Pressure: 0.7 bar
• Contact Rating: 5(2)A 230Vac
• Max Ambient Temp: 50°C
• Max Fluid Temp: 88°C
• Warranty: 5 years

What’s in the Box?

1 x EPH B322PF 22mm 3 Port Motorised Valve
