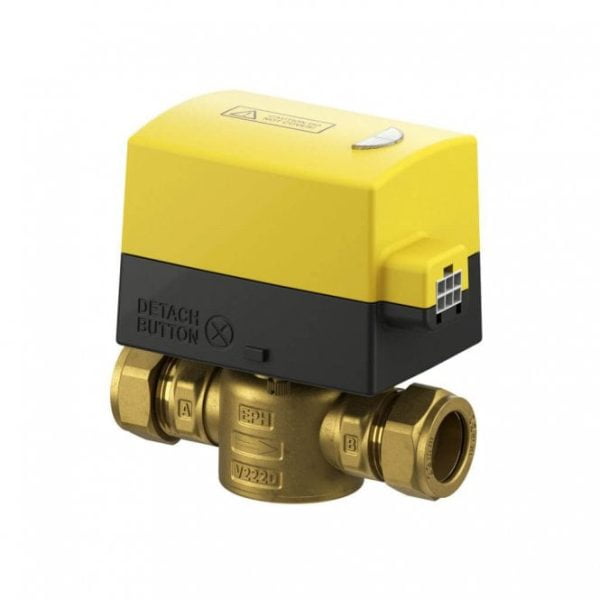

EPH V222P 22mm 2 Port Motorised Valve
EPH

EPH V222P 22mm 2 Port Motorised Valve

  • SKU 7CVF0010
  • MPN V222P
  • EAN 5391515070554

EPH V222P 22mm 2-port motorised valve provides reliable zoning for domestic central heating and hot water circuits with detachable actuator and spring return action.

£61.34 (inc VAT)£51.12 (ex VAT)

Out of stock

Out of stock

Want to be notified when this product is back in stock?

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

The EPH V222P is a 22mm compression 2-port motorised zone valve designed for domestic central heating and hot water systems. It features a detachable actuator, 1.2m cable with power-on light, and spring-return closure for dependable circuit control.

Key Features

  • Detachable actuator for easy installation and maintenance
  • Motor open, spring return to close
  • Manual override lever
  • Auxiliary switch for boiler/pump interlock
  • 5-wire connection with 1.2m cable

Specifications

  • Connection: 22mm compression
  • Flow rate: 4.6 kvs
  • Max close-off pressure: 1.0 bar
  • Max fluid temperature: 88°C
  • Max ambient temperature: 50°C
  • Auxiliary contact rating: 11(3)A 230Vac
  • Power consumption: 5W
  • Protection rating: IP20

Applications

Ideal for zoning hot water or central heating circuits in domestic properties. Not suitable for commercial or industrial use.

What’s in the box

  • 1x EPH V222P 22mm 2-port motorised valve (actuator + body)
  • Compression nuts and olives
  • 1.2m cable

Specifications

Connection22mm compression
Flow rate4.6 kvs
Max close off pressure1.0 bar
Max fluid temperature88°C
Max ambient temperature50°C
Auxiliary contact rating11(3)A 230Vac

Product details

Weight .3 kg
Fitting Size

22mm
SKU 7CVF0010
EAN / Barcode 5391515070554
