What is the benefit of the delay fill feature?

It only allows the cistern to start refilling once flushing is complete, saving water and supporting BREEAM and Code for Sustainable Homes.

Is the float arm secure?

Yes, the unique float arm design makes it impossible for the float to become detached.

Does it include a filling tube sheath?

No, Hydroflo Valves are no longer supplied with a plastic filling tube sheath due to clarified water regulations 2019.

Thomas Dudley

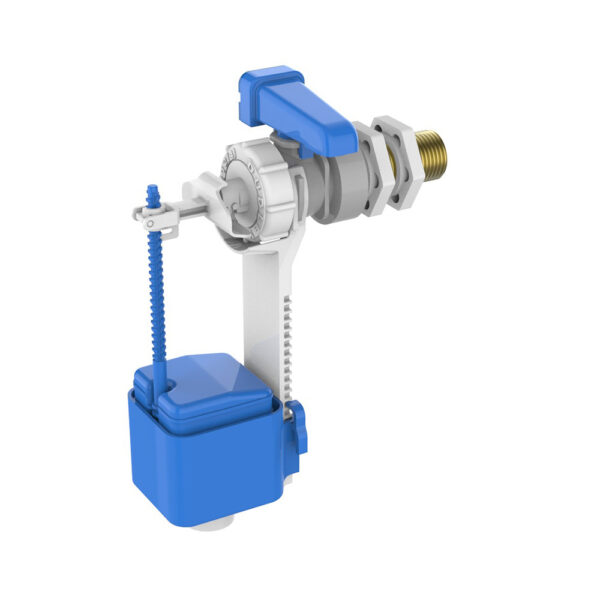

Dudley 324298 Hydroflo 1/2″ BSP Side Inlet Float Valve with Delay Fill

SKU 5PMD0070
MPN 324298
EAN 5013241048620

Side inlet compact float valve by Thomas Dudley with water-saving delay fill and 1/2″ BSP brass tail inlet to eliminate cross threading.

£13.96 (inc VAT)£11.63 (ex VAT)

8 in stock

Fast UK delivery
Order by 2pm for same-day dispatch
Secure checkout
Easy returns

Description

Side inlet compact float valve by Thomas Dudley featuring water saving delayed fill and a brass inlet to eliminate cross threading. Delay fill models save water and support the Code for Sustainable Homes and BREEAM by only allowing a cistern to start refilling once flushing is complete.

Key Features

1/2″ BSP Brass tail inlet
Water saving delay fill action
Delays instant filling while cistern is flushing
Compact body, arm and float
Quiet filling
Unique float arm – impossible to become detached
Built in backflow prevention

Specifications

1/2″ BSP brass tail
Side inlet with air gap as standard
Integral flow regulator fitted
WRAS approved

Applications

Replacement inlet valve for most plastic and ceramic exposed and concealed cisterns.

What’s in the box

Hydroflo side inlet delay fill float valve with brass tail. Note: Hydroflo Valves are no longer supplied with plastic filling tube sheath due to clarified water regulations 2019.

Specifications

Inlet size	1/2" BSP
Inlet type	Brass tail, side entry
Fill type	Delay fill
Features	Air gap, integral flow regulator, unique float arm, backflow prevention
Approval	WRAS approved
Manufactured in	United Kingdom
