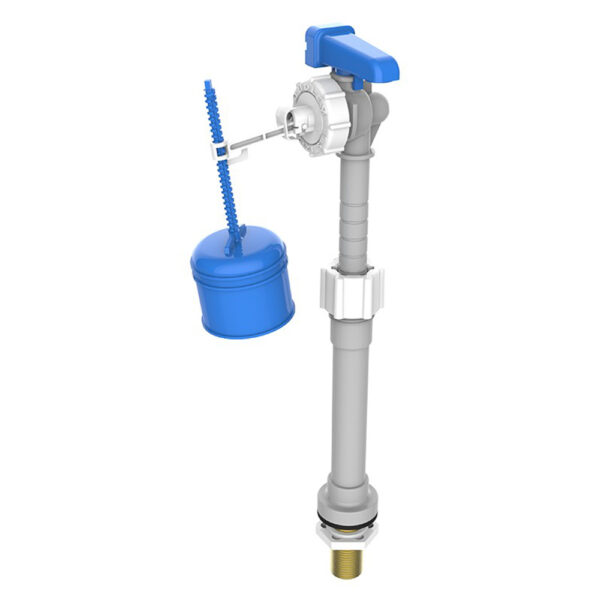

Thomas Dudley Hydroflo 324302 telescopic bottom inlet float valve
Thomas Dudley

Dudley 324302 Hydroflo 1/2″ BSP Bottom Inlet Float Valve

  • SKU 5PMD0290
  • MPN 324302
  • EAN 5013241048668

The Dudley Hydroflo 324302 is a telescopic bottom inlet float valve with 1/2″ BSP brass tail, supplied with integral flow regulator and two backflow prevention devices for reliable, quiet cistern filling.

£18.88 (inc VAT)£15.73 (ex VAT)

8 in stock

8 in stock

More of this item can be ordered on backorder,

  • Fast UK delivery
  • Order by 2pm for same-day dispatch
  • Secure checkout
  • Easy returns

Description

The Thomas Dudley Hydroflo 324302 is a professional-grade telescopic bottom inlet float valve designed for high-performance and quiet operation in most plastic and ceramic cisterns.

Key Features

  • Supplied fitted with integral flow regulator
  • Adjustable height 8″ – 11.5″
  • Two built-in backflow prevention devices to prevent contamination of fresh water supply
  • 1/2″ brass tail
  • Equilibrium quiet-filling Part 4 valve manufactured to BS1212 standards

Specifications

  • Connection: 1/2″ BSP brass tail
  • Height: adjustable 203 mm (8″) to 292 mm (11.5″)
  • Finish: Grey
  • Manufactured in: United Kingdom

Applications

Ideal replacement inlet valve for bottom-entry toilet cisterns. Suitable for low and high pressure supplies.

What’s in the box

1 x Hydroflo 324302 telescopic bottom inlet valve

Telescopic valves can have a joint beneath the waterline when installed. To ensure full compliance to water regulations when fitting, please ensure the joint is above the critical waterline.

Specifications

Connection1/2" BSP brass tail
Height adjustment8" – 11.5" (203 – 292 mm)
Flow regulatorIntegral (pre-fitted)
Backflow preventionTwo built-in devices
StandardBS1212 Part 4
FinishGrey

Product details

Weight 0.3 kg
Finish

Grey
SKU 5PMD0290
EAN / Barcode 5013241048668
