Cistermiser B79104 Infrared Control Valve IRC2

Motion-sensing infrared urinal flushing control valve complete with brass-bodied solenoid valve and flush mounting bracket for ceiling or cavity wall installations. Battery or mains powered, for cistern flushing applications.

The market-leading Infrared Control (IRC®) urinal flushing valve from Cistermiser automatically manages the supply of water to a urinal cistern. The PIR sensor detects movement and activates the solenoid valve, allowing water into the cistern. Incorporating the same proven and robust brass valve, features include a stylish and compact body shape, an economy mode option to provide even greater water savings and a design which allows easy-to-use battery replacement.

Key Features

• The ideal valve for control of cistern fed urinals
• Normal or economy mode water saving options
• Battery or mains powered
• Pipe, wall or ceiling mounted sensor – surface mounted or recessed
• Ensure compliance with the water regulations
• Reduces water consumption by over 80%
• Visible LED status indicator and low battery alert
• Can be concealed to reduce the risk of vandalism

Specifications

• Fitting size: 1/2″ BSP (15mm)
• Water supply pressure: 0.1 to 6 bar
• Sensor dimensions: 85mm W x 85mm H x 68mm D
• Detection range: 125° infrared, up to 9.2m at floor level, max height 2.5m
• Power: 6V DC (battery or mains 230V AC with battery backup)
• Battery: 4 x 1.5V AA alkaline (approx. 3 years life)
• Solenoid valve: 6V latching, WRAS approved, brass body

Applications

Ideal for commercial washrooms with cistern-fed urinals. Automatically flushes on occupancy detection and includes hygiene flush after 12 hours of no use.

What’s in the box

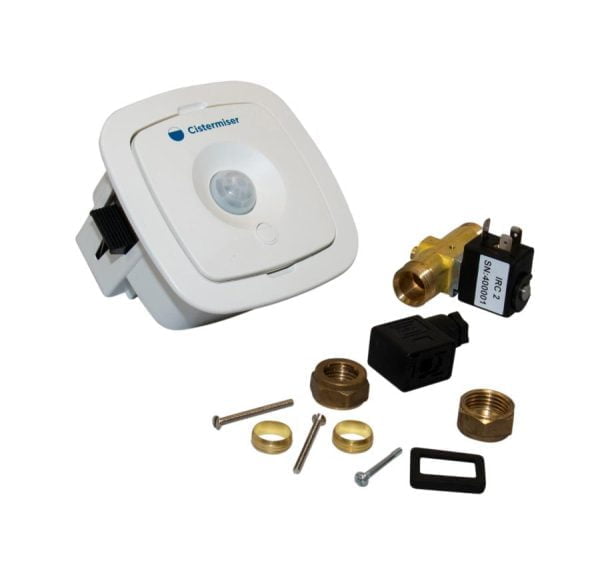

IRC2 control valve with solenoid, sensor module, mounting bracket, floating socket, cutting template and installation instructions.
