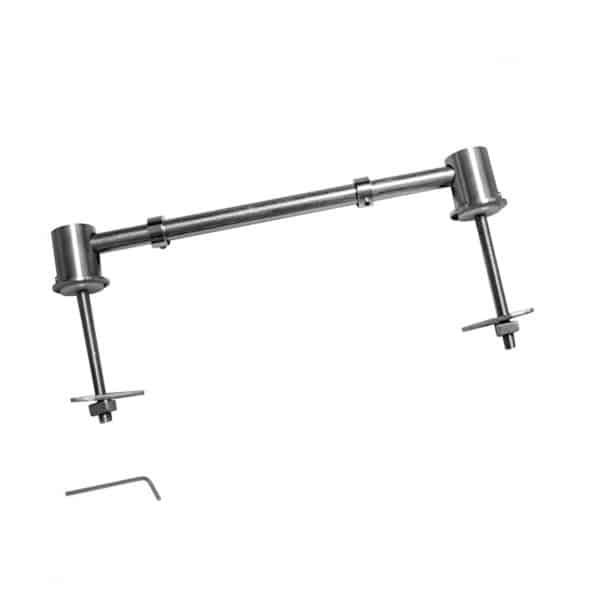

Wirquin FBH11SS Celmac Concealed Anti Vandal Top Fix Toilet Seat Bar Hinge Steel 20120566

Replacement Stainless Steel bar hinge made for the popular Celmac Saxon, Calypso, Sonata toilet seats used in many public, high traffic installations.

This set is ideal for replacing the standard plastic hinges supplied with Celmac commercial high usage seats and will add stability and an anti-vandal element with the solid design and grub screw fixing.

Key Features

• Replacement Bar Hinge
• Top Fix Design
• Suits Celmac Seats
• Length 192mm (Can be cut to size)
• Remove/Fix with allen key
• Manufactured in 304 Steel
• Anti Vandal design
• Ideal for Bars, Restaurants, hotels etc

Note: The Hinge Block is ‘Top Fix’ and tightened by a unique shaped washer & Back Nut through the pan hole

Specifications

• Material: Stainless steel
• Fixation: Top fix
• Length: 192 mm (cuttable)
• Compatible seats: Sonata, Saxon, Calypso, Celeste Plus and similar Celmac models

Applications

High-traffic commercial and public washrooms including bars, restaurants and hotels.

What’s in the box

1 x stainless steel bar hinge set with fixings and Allen key.
