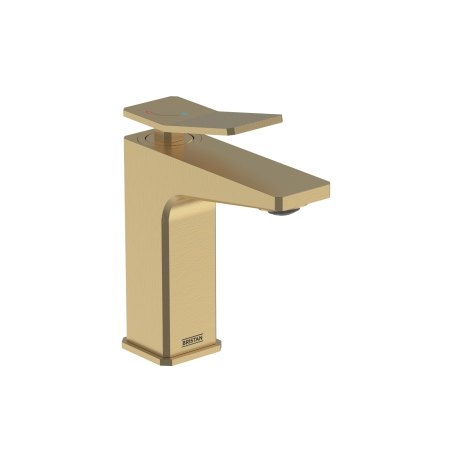

Bristan TAN ES BAS BB Tan Es Bas Bb

The Bristan Tangram Eco Start Basin Mixer with Clicker Waste (TAN ES BAS BB) combines contemporary geometric design with practical efficiency features. Finished in warm brushed brass, it includes a clicker waste and is supplied with flexible tails for straightforward deck-mounted installation on single-hole basins.

Key Features

• Eco Start technology runs cold in the central lever position, activating hot water only when needed to reduce energy use
• Built-in 5L/min flow regulator controls water consumption without compromising performance
• Long-life ceramic cartridge for smooth, reliable operation
• Robust metal fixing nut for secure installation
• Supplied complete with flexible tails and clicker waste
• WRAS approved

Specifications

• Material: Brass, ABS and stainless steel
• Finish: Brushed brass
• Inlet connections: 1/2” BSP flexible tails
• Outlet: M24 5lpm coin-slot flow limited aerator
• Valve: 28mm Eco-Start cartridge
• Operating pressure: 0.5–5 bar dynamic (max static 10 bar)
• Maximum hot water temperature: 65°C
• Flow rate: up to 5.6 l/min
• Guarantee: Lifetime parts, 1 year labour

Applications

Ideal for modern bathrooms on all plumbing systems. Suitable for low-pressure systems from 0.5 bar.

What’s in the box

Basin mixer tap, clicker waste, flexible tails, fixing kit.
