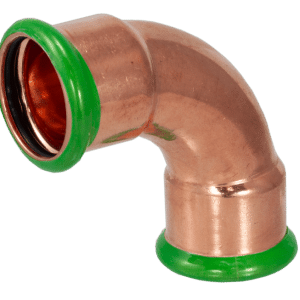

15mm M/F Elbow Pegasus M Profile WRAS Press Fitting

The Pegasus PressFit range provides a comprehensive plumbing and heating solution with the most cost effective fittings in the market. When used with copper tube to BS EN1057 table-X the Pegasus M-Profile fittings provide a flame-free, permanent and leak-proof joint and are suitable for use on the following: Drinking water, Heating, Rainwater, Compressed air, Fire extinguishing systems, Sanitary water.

Key Features

• Easier to work during installation compared with other pipe systems.
• O-rings incorporate leak detection indicators.
• Seals are made when the green plastic cover (crimp indicator) peels away from the fitting when crimped correctly.
• Flame-free installation. No torch, no gas, no flux, no system contaminants.
• 10 year guarantee.
• WRAS approved.
• Hot & cold potable water applications.
• Maximum working pressure: 16 bar.
• Maximum operating temperature: 110°C (WRAS Approved up to 85°C).
• EPDM ‘O’ ring.

Specifications

• Size: 15mm
• Type: M/F 90° Elbow (Street Elbow)
• Profile: M-Profile
• Material: Copper
• Seal: EPDM O-ring
• Approvals: WRAS

Applications

Suitable for drinking water, heating, rainwater, compressed air, fire extinguishing systems and sanitary water when used with copper tube to BS EN1057 Table X.

What’s in the box

1 x 15mm M/F Elbow Pegasus M Profile Press Fitting
