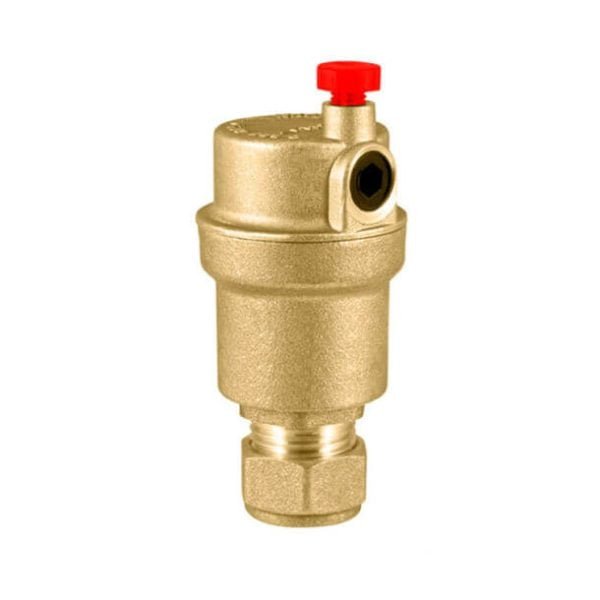

Inta AAV07911500 15mm Automatic Brass Air Vent

The Inta automatic air vent has been designed for use in heating systems to continually remove air which builds up inside the system without the need to manually vent the system. The automatic air vent consists of a float connected to a valve. As the air exceeds a given level inside the float chamber the float drops opening the valve and releasing the air trapped within the chamber. When the air is released it is replaced by water which in turn moves the float back into the up position sealing the valve. A neat and economic component, negating the requirement for an additional isolating ball valve.

Key Features

• Automatically discharges air build up
• Improves efficiency
• Designed for use in heating systems
• Removes air build up inside the system
• Max Venting Pressure 6 bar
• Max Working Pressure 10 bar
• Max water temperature 115°C

Specifications

• Connection: 15mm compression
• Material: Brass
• Max inlet pressure (static): 10 bar
• Min discharge pressure: 6 bar
• Max inlet temperature: 115°C
• Fluid type: Water / Glycol (30%) mix

Applications

Heating systems to continually and automatically vent trapped air.

What’s in the box

1 x Inta 15mm Automatic Brass Air Vent
